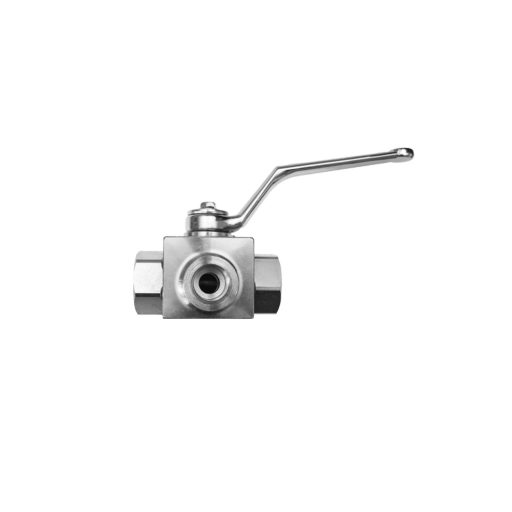

GB3VH 3/4” BSP – 3-way ball valve
Product description:
The GB3VH 3/4” 3-way ball valve is used for flow direction control and switching in hydraulic systems. It features three BSP female threaded ports (F–F–F). Its steel housing, NBR O-ring sealing and POM ball seat ensure long service life and reliable operation even under high-pressure conditions.
Key features:
- Type: 3-way ball valve
- Part number: GB3VH 3/4
- Connection (R1): 3/4” BSP female thread (F–F–F)
- Nominal diameter (DN): 20
- Maximum operating pressure: 500 bar
- Housing material: Steel
- Seal material: NBR
- Ball seat material: POM (polyoxymethylene)
- Operating temperature range: -20 °C to +100 °C
