HYDRAULIC 2 WAYS BALL VALVE 1/4"

Name: HYDRAULIC 2 WAYS BALL VALVE 1/4"
Brand: DICSA
SKU: HK_GB2V_14
Price: 21 EUR
Availability: InStock

Type of valve: System integrable valve

Type of block: Ball valve

Max. pressure: 500 bar

Connection: 1/4" BSP

Max. flow rate: N/A

Pipe / Hose connection: BSP

Thread location: INNER

Seal: NBR: +100°C / -20°C

Manufacturer: DICSA

Datasheet: Kattintson ide a letöltéshez

In stock

16 €+VAT

Item number:

HK_GB2V_14

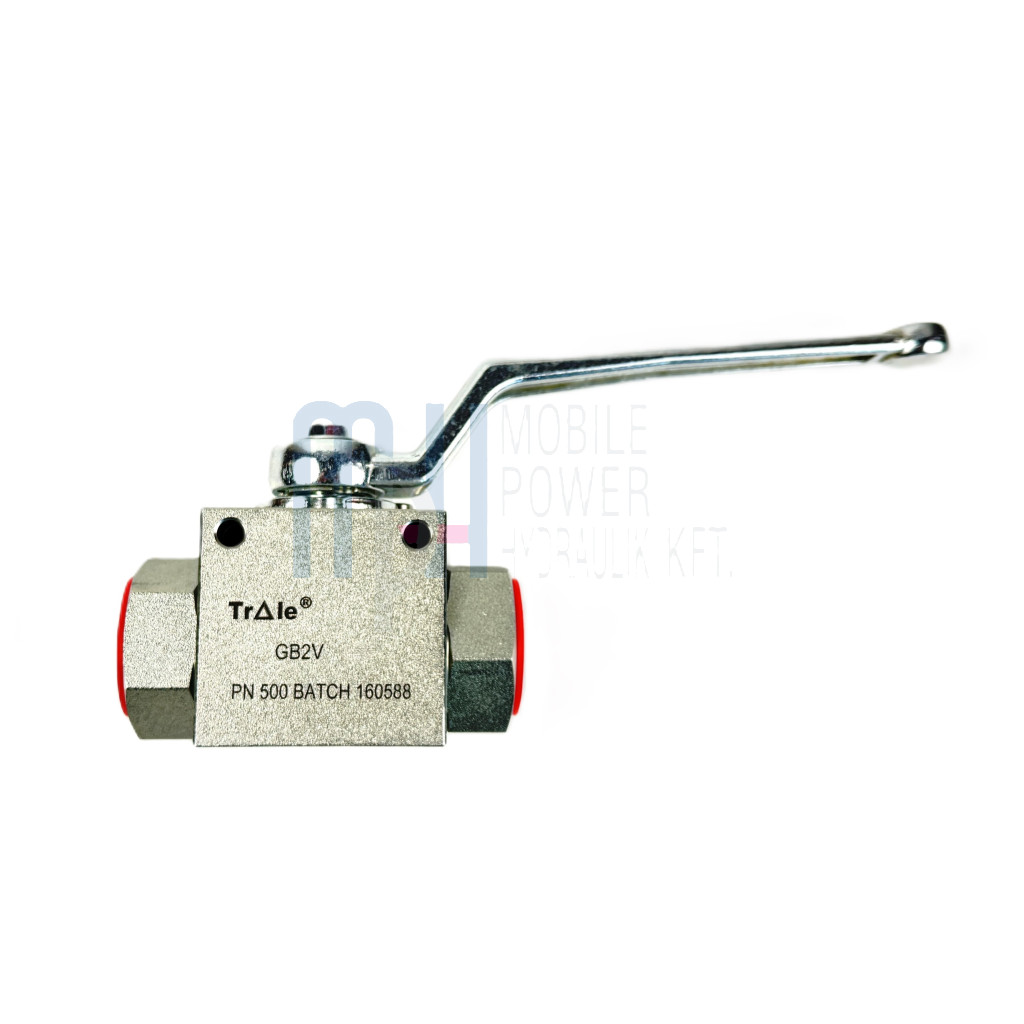

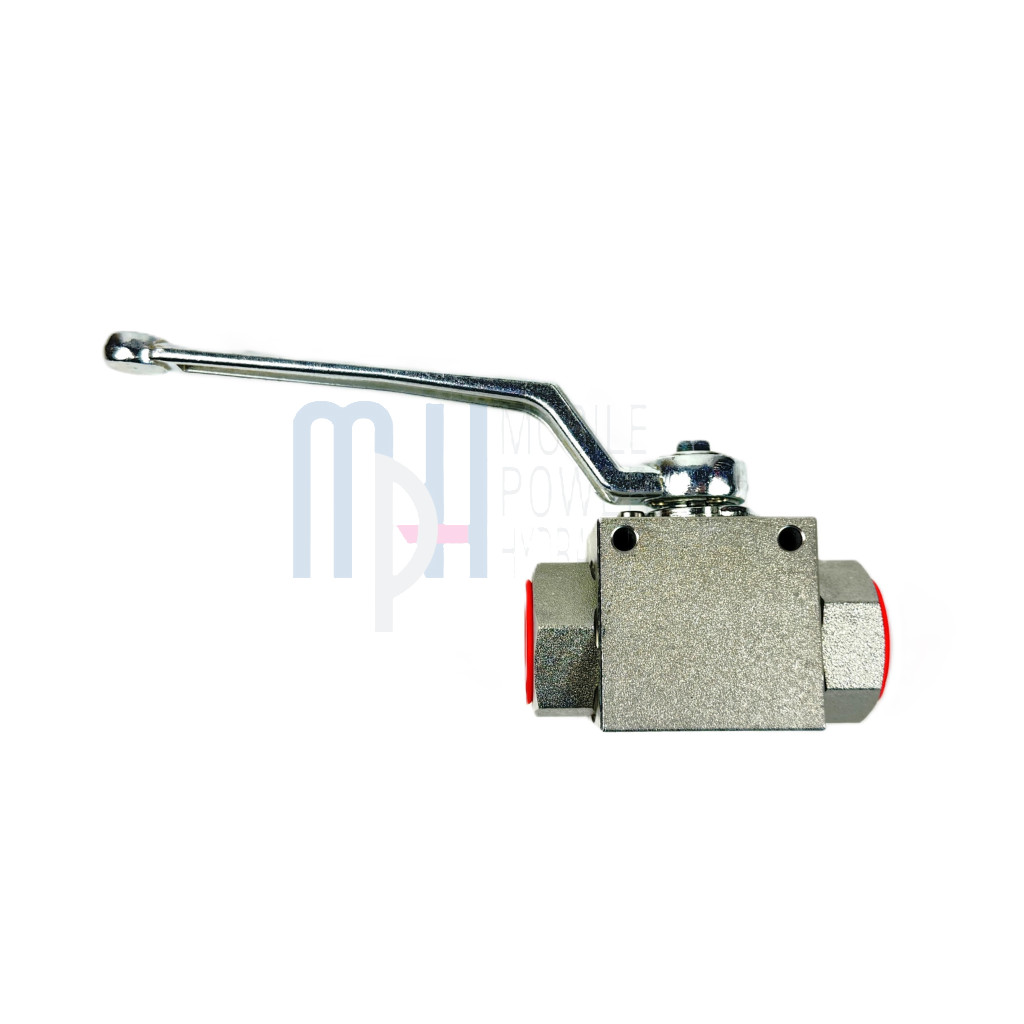

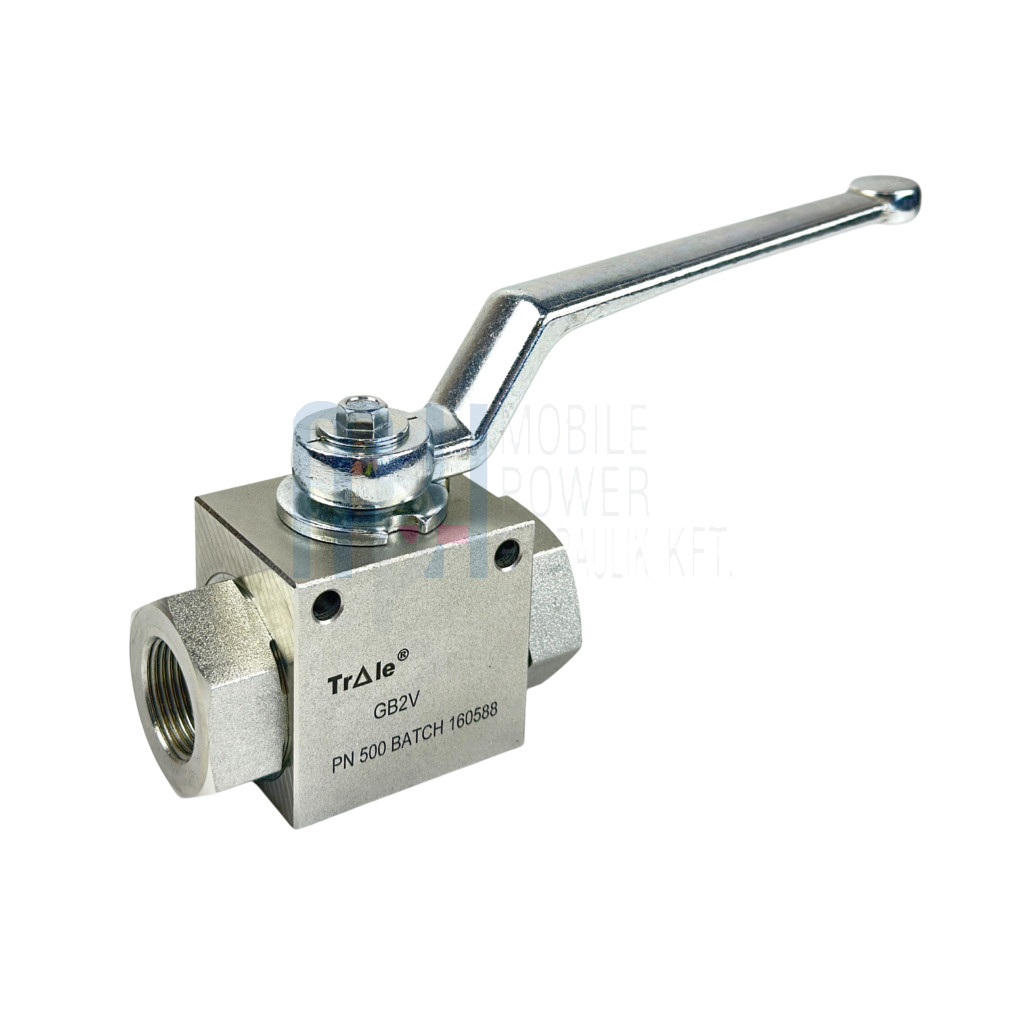

GB2V 1/4” BSP – 2-way ball valve

Product description:

The GB2V 1/4” 2-way ball valve is designed for safe opening and closing of flow in hydraulic systems. It features BSP female threaded connections, a steel body, and a reliable ball shut-off mechanism. The NBR O-ring sealing and POM ball seat ensure long service life and dependable operation even in high-pressure applications.

Main features:

Type: 2-way ball valve
Part number: GB2V 1/4
Connection (R1): 1/4” BSP female thread
Nominal diameter (DN): 6
Maximum operating pressure: 500 bar
Body material: Steel
Seal material: NBR
Ball seat material: POM (polyoxymethylene)
Operating temperature range: -20 °C – +100 °C

Data

Weight:

520 g/pc(s)

Details

Working Principle

Inside the valve is a rotating ball with a central bore. When the handle is turned 90°, the bore aligns with the flow path, allowing fluid to pass through freely. Turning the handle back rotates the solid side of the ball against the seat, completely blocking the flow.

The POM seats and NBR seals ensure tight shut-off even under high pressure and system vibrations.
