FLOW RESTRICTOR VALVE 3/4"

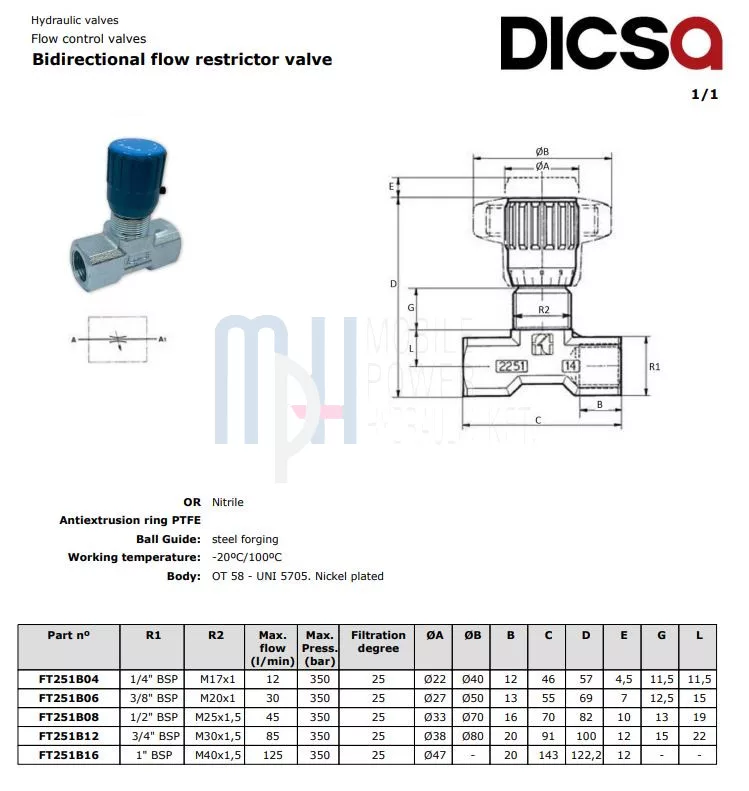

FT251B12 3/4” BSP – Bidirectional flow control valve
Product description:
The FT251B12 bidirectional flow control valve is designed for precise and stepless flow regulation in both directions in hydraulic systems. It is a reliable solution for higher flow applications where stable and accurate control of actuator speed is required. The valve features a nickel-plated brass housing with durable internal components.
Main features:
- Type: Bidirectional flow control valve
- Part number: FT251B12
- Connection (R1): 3/4” BSP
- R2 connection: M30×1.5
- Max. flow rate: 85 l/min
- Maximum operating pressure: 350 bar
- Housing material: OT58 brass, nickel-plated
Working Principle
The valve operates using a precision needle that can be manually adjusted via the top rotary knob to regulate flow in both directions. By altering the cross-sectional area, the user can fine-tune hydraulic fluid speed, optimizing actuator or motor control.
An internal check valve ensures consistent throttling in both flow directions, providing smooth and predictable movement. Additionally, a built-in 25-micron filtration system helps protect downstream components from debris and wear.
