FLOW RESTRICTOR VALVE 1/2"

Name: FLOW RESTRICTOR VALVE 1/2"
Brand: DICSA
SKU: HK_FT251B08
Price: 47 EUR
Availability: InStock

Type of valve: FINOM FOJTÓ SZELEP

Max. pressure: 350 bar

Connection: 1/2" BSP

Max. flow rate: 45 l/min

Material: OT 58 - UNI 5705. Nickel plated

Operating temperature: -20ºC/100ºC

Manufacturer: DICSA

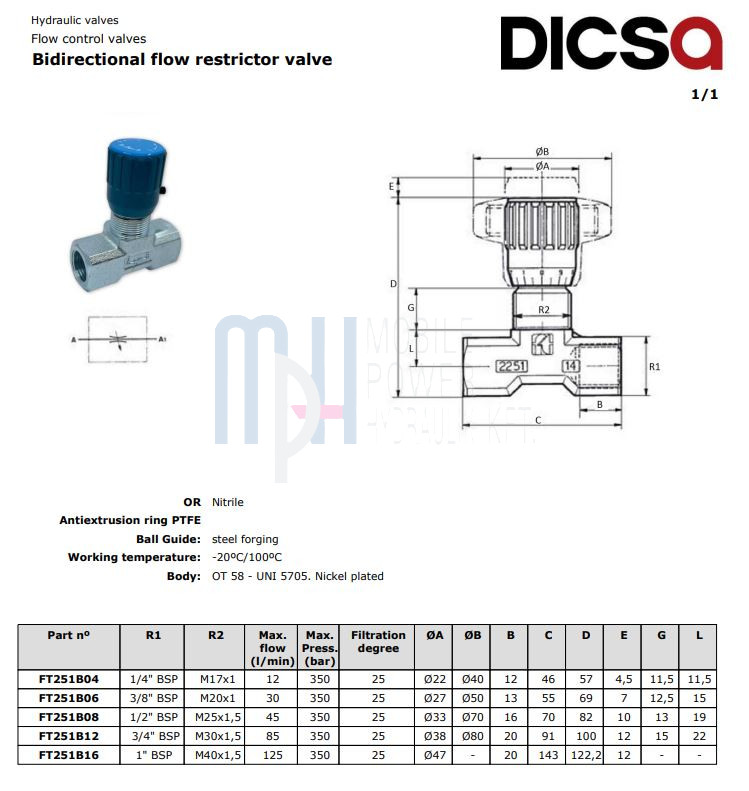

Datasheet: Kattintson ide a letöltéshez

Manufacturer part number: FT251B08

In stock

37 €+VAT

Item number:

HK_FT251B08

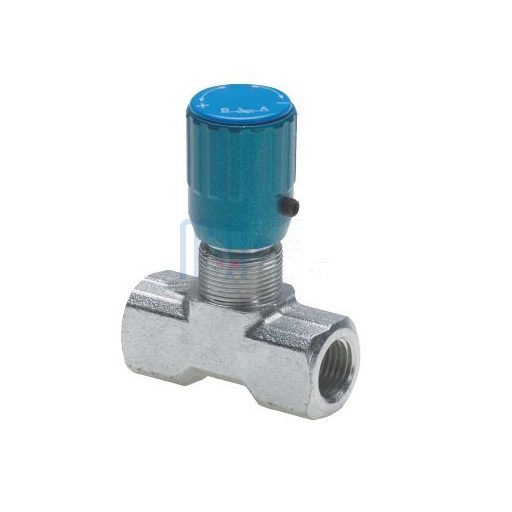

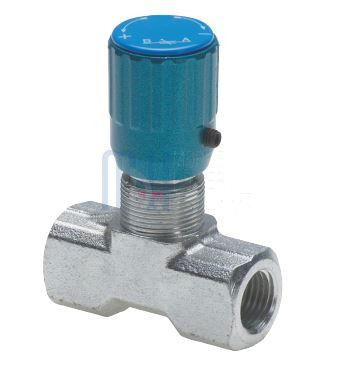

FT251B08 1/2” BSP – Bidirectional flow control valve

Product description:

The FT251B08 bidirectional flow control valve is designed for stepless and precise flow regulation in both directions in hydraulic systems. It is suitable for accurate control of hydraulic actuator speed, ensuring stable and reliable operation. The valve features a nickel-plated brass housing with durable internal components.

Main features:

Type: Bidirectional flow control valve
Part number: FT251B08
Connection (R1): 1/2” BSP
R2 connection: M25×1.5
Max. flow rate: 45 l/min
Maximum operating pressure: 350 bar
Housing material: OT58 brass, nickel-plated

Data

Weight:

50 g/db

Details

Operating Principle

This valve functions using a precision needle-type flow control mechanism that allows for smooth bidirectional adjustment. By turning the control knob, the user can precisely regulate the hydraulic flow rate, directly influencing actuator speed.

Thanks to its symmetric design, it ensures the same level of control in both directions of flow. Additionally, it includes a 25-micron filtration screen to trap contaminants, protecting the hydraulic system and extending component life.
