FLOW RESTRICTOR VALVE 3/8"

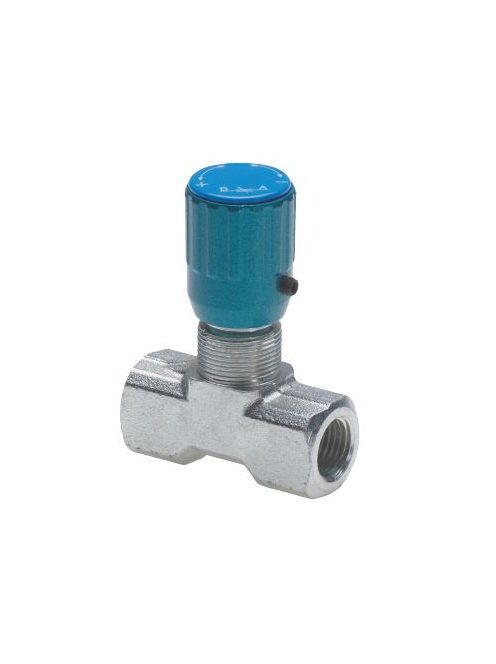

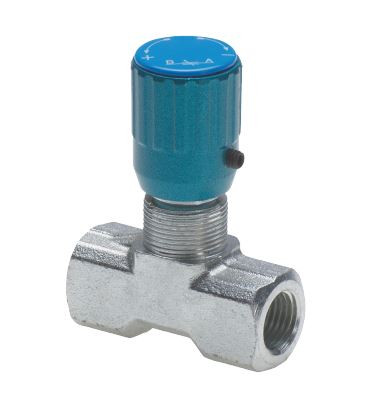

FT251B06 3/8” BSP – Bidirectional flow control valve
Product description:
The FT251B06 bidirectional flow control valve is designed for precise and stepless flow regulation in both directions in hydraulic systems. The finely adjustable design allows accurate control of actuator speed. It features a nickel-plated brass housing with reliable internal components, ensuring long service life and dependable operation.
Main features:
- Type: Bidirectional flow control valve
- Part number: FT251B06
- Connection (R1): 3/8” BSP
- R2 connection: M20×1
- Max. flow rate: 30 l/min
- Maximum operating pressure: 350 bar
- Housing material: OT58 brass, nickel-plated
Operating Principle
This valve operates on the principle of a precision needle-type regulator, allowing fine adjustment of oil flow in both directions. The operator can manually increase or decrease the flow cross-section using the adjustment knob, thereby finely tuning the speed of hydraulic actuators such as cylinders or motors.
Because it is bidirectional, it maintains consistent control in both flow directions, ensuring smooth and stable operation. An integrated 25-micron filtration screen helps protect the hydraulic system from contaminants, contributing to long-term reliability.
