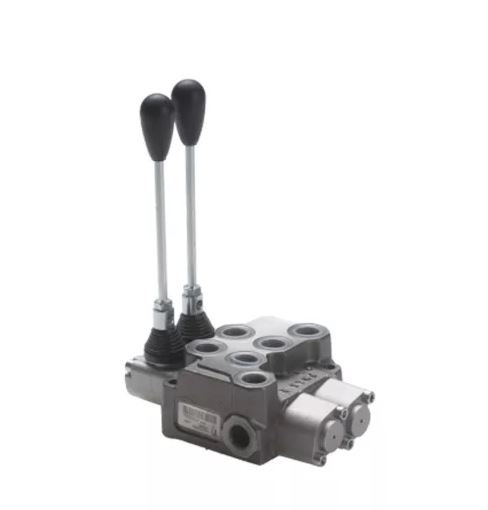

Hydraulic Monoblock Valve FM85/2 3/4 2P DS
Product description:
The FM85/2 3/4 2P DS is a two-section, high-flow hydraulic monoblock directional control valve that provides one DE (double effect) – double-acting – and one SE (single effect) – single-acting – working circuit. Each control lever features a spring return mechanism, ensuring that the circuits automatically return to a safe neutral position when released.
The FM85 series is designed for heavy-duty hydraulic applications, delivering a 90 l/min nominal and up to 100 l/min maximum flow rate. The valve withstands up to 320 bar maximum operating pressure, while the built-in check/relief valve is adjustable between 100–250 bar (factory setting: 140 bar). The 3/4" BSP hydraulic ports provide excellent flow capacity and stable pressure conditions.
Technical specifications:
- Nominal flow rate: 90 l/min
- Maximum flow rate: 100 l/min
- Nominal pressure: 250 bar
- Maximum operating pressure: 320 bar
- Max. tank line pressure: 80 bar
- Relief / check valve range: 100–250 bar (factory: 140 bar)
- Number of sections: 2
- Spool type: DS – one double-acting and one single-acting circuit
- Inlet/outlet ports: 3/4" BSP
Applications:
- Combined hydraulic systems (DE + SE)
- Control of tipping and lifting cylinders
- Municipal, agricultural and industrial machinery
- High-flow, multi-circuit hydraulic applications requiring reliable operation
The FM85/2 3/4 2P DS valve is an excellent choice for systems requiring precise and safe control of mixed-function hydraulic circuits within a high-performance monoblock valve.
