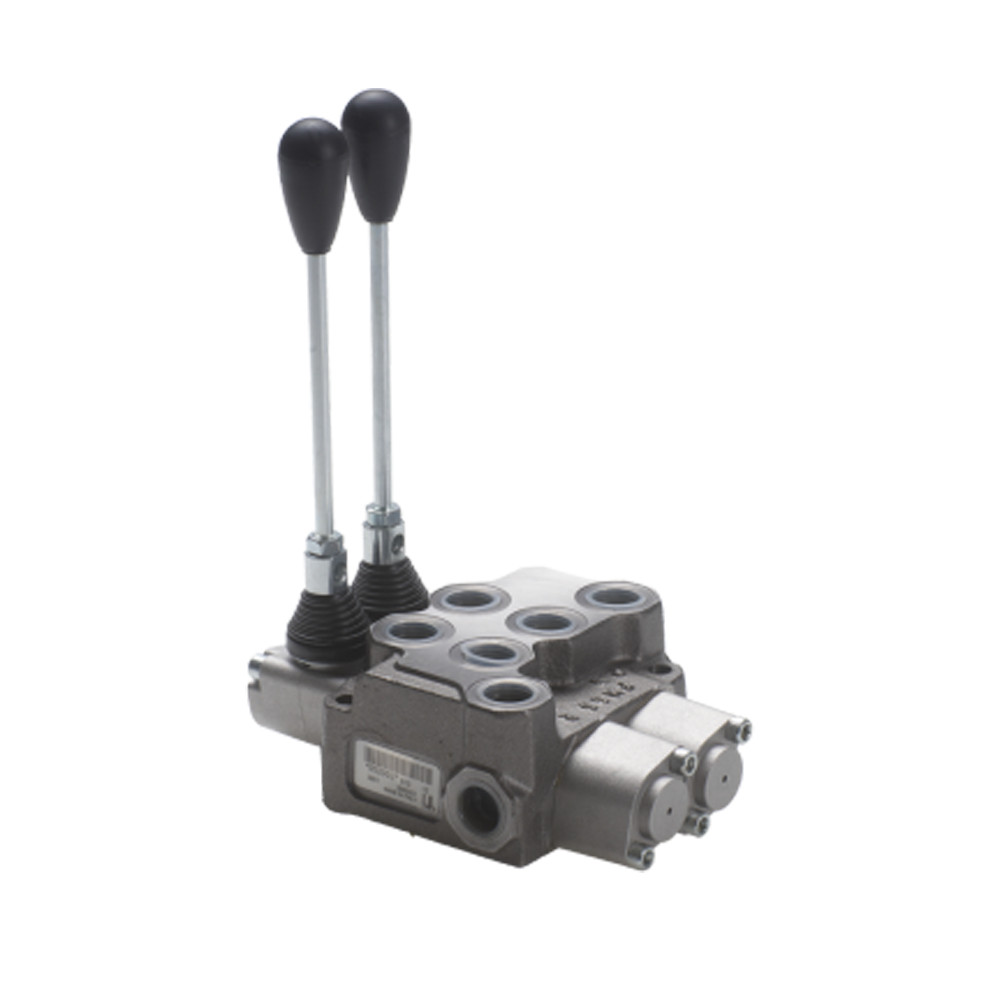

Hydraulic Monoblock Valve FM85/2 3/4 2P DD
Product description:
The FM85/2 3/4 2P DD is a two-section, high-flow hydraulic monoblock directional control valve that provides DE (double effect) – double-acting – control on both working circuits. The valve levers are equipped with a spring return mechanism, ensuring that the hydraulic circuits immediately return to a safe neutral position when the levers are released.
This model is part of the high-performance FM85 series, offering a 90 l/min nominal and up to 100 l/min maximum flow rate, while being designed to withstand 320 bar maximum operating pressure. The built-in check/relief valve is adjustable between 100–250 bar, with a factory setting of 140 bar. The 3/4" BSP ports provide high flow capacity with minimal pressure loss.
Technical specifications:
- Nominal flow rate: 90 l/min
- Maximum flow rate: 100 l/min
- Nominal pressure: 250 bar
- Maximum operating pressure: 320 bar
- Max. tank line pressure: 80 bar
- Relief / check valve range: 100–250 bar (factory: 140 bar)
- Number of sections: 2
- Spool type: DD – two double-acting circuits
- Inlet/outlet ports: 3/4" BSP
Applications:
- Control of two double-acting hydraulic cylinders
- High-performance hydraulic systems
- Lifting, manipulating and loading equipment
- Multi-circuit hydraulic systems in industrial and agricultural machinery
The FM85/2 3/4 2P DD valve is an excellent choice for systems requiring reliable, precise and high-flow control of two demanding double-acting hydraulic circuits.
