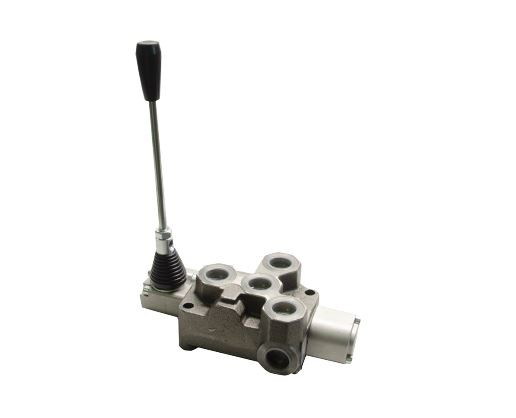

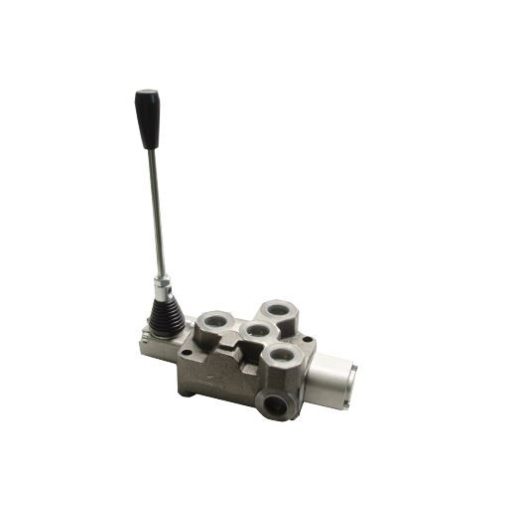

Hydraulic Monoblock Valve FM85/1 3/4 1P S.E.
Product description:
The FM85/1 3/4 1P S.E. is a high-flow, single-section hydraulic monoblokk directional control valve designed for SE (single effect) – single-acting – circuit control. The valve is manually operated, and the lever features a spring return mechanism that brings it back to the neutral position, ensuring immediate and safe interruption of the hydraulic function.
The robust FM85 series design enables a 90 l/min nominal and up to 100 l/min maximum flow rate, while the valve withstands up to 320 bar maximum operating pressure. The built-in check/relief valve is adjustable between 100–250 bar (factory setting: 140 bar). The 3/4" BSP ports ensure optimal flow performance even under heavy load.
Technical specifications:
- Nominal flow rate: 90 l/min
- Maximum flow rate: 100 l/min
- Nominal pressure: 250 bar
- Maximum operating pressure: 320 bar
- Max. tank line pressure: 80 bar
- Relief / check valve range: 100–250 bar (factory: 140 bar)
- Number of sections: 1
- Spool type: S.E. – single-acting (single effect)
- Inlet/outlet ports: 3/4" BSP
- Dimensions: I = 65 mm / L = 115 mm
Applications:
- Hydraulic cylinders with gravity return
- Tipping, lifting and simple motion functions
- Municipal, agricultural and industrial machinery
- Control of high-flow single-acting hydraulic circuits
The FM85/1 3/4 1P S.E. valve is an excellent solution for any system requiring reliable, safe and efficient control of a high-flow, single-acting hydraulic circuit.
