Hydraulic Monoblock Valve FM55/5 1/2 5P DDDDD
Product description:
The FM55/5 1/2 5P DDDDD is a five-section, high-performance hydraulic monoblock directional control valve that provides DE (double effect) control – double-acting operation – on all five sections. Each lever is equipped with a spring return mechanism, ensuring safe return to the neutral position and secure interruption of the hydraulic functions.
Thanks to the outstanding flow capacity of the FM55 series, the valve offers a 50 l/min nominal and up to 70 l/min maximum flow rate, while handling pressures up to 300 bar. The built-in pressure relief valve is adjustable between 100–250 bar, factory-set at 140 bar. The 1/2" BSP ports ensure high flow, low pressure loss and reliable operation in every working section.

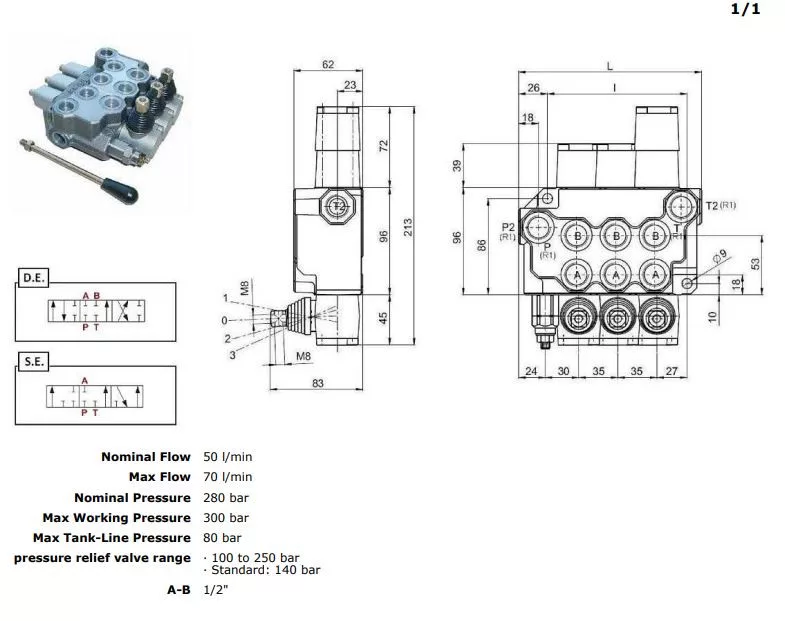

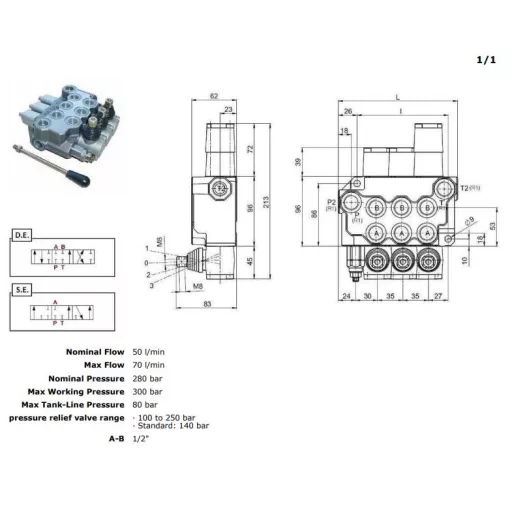

Technical specifications:
- Nominal flow rate: 50 l/min
- Maximum flow rate: 70 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Relief valve setting range: 100–250 bar (factory: 140 bar)
- Number of sections: 5
- Spool type: DDDDD – five double-acting spools
- Inlet/outlet ports: 1/2" BSP
Applications:
- Multi-circuit, heavy-duty hydraulic systems
- Loader, manipulator and crane systems
- Industrial and agricultural machinery with complex hydraulic functions
- Precise and independent control of five double-acting hydraulic cylinders
The FM55/5 1/2 5P DDDDD valve is an ideal solution for equipment requiring multiple hydraulic functions with high flow capacity and reliable operation in a single monoblock unit.
