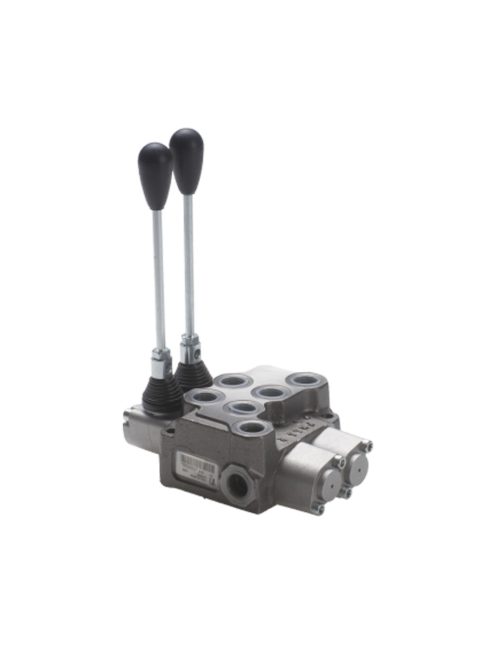

Hydraulic Monoblock Valve FM55/2 1/2 2P DS
Product description:
The FM55/2 1/2 2P DS is a two-section, high-flow hydraulic monoblack directional control valve that provides one DE (double effect) – double-acting – and one SE (single effect) – single-acting – working circuit. The levers are equipped with a spring return mechanism, ensuring automatic return to the neutral position and placing the hydraulic system in a safe state when released.
As part of the FM55 series, the valve offers a 50 l/min nominal and up to 70 l/min maximum flow rate, and is designed for 300 bar maximum operating pressure. The integrated pressure relief valve is adjustable between 100–250 bar, factory-set at 140 bar. The 1/2" BSP ports ensure excellent flow performance even under higher loads.
Technical specifications:
- Nominal flow rate: 50 l/min
- Maximum flow rate: 70 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Relief valve setting range: 100–250 bar (factory: 140 bar)
- Number of sections: 2
- Spool type: DS – one double-acting and one single-acting circuit
- Inlet/outlet ports: 1/2" BSP
Applications:
- Combined hydraulic systems (DE + SE)
- Tipping, lifting and actuator cylinders
- Agricultural and municipal machinery
- Control of high-flow, mixed-function hydraulic circuits
The FM55/2 1/2 2P DS valve is an excellent choice for systems where one double-acting and one single-acting circuit must be reliably, safely and efficiently controlled within a compact valve block.
