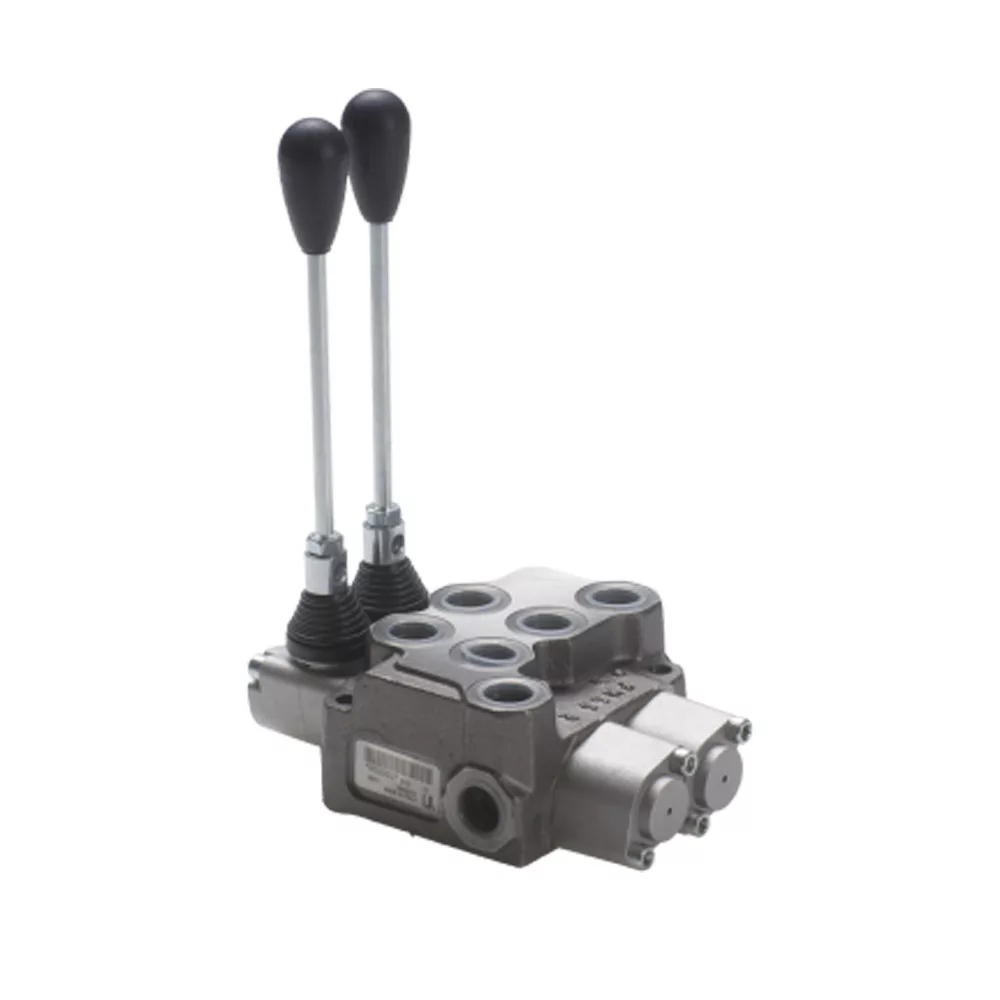

Hydraulic Monoblock Valve FM55/2 1/2 2P DD
Product description:
The FM55/2 1/2 2P DD is a two-section, high-flow hydraulic monoblock directional control valve that provides DE (double effect) – double-acting – control on both working circuits. The manually operated levers feature a spring return mechanism, ensuring automatic return to the neutral position when released, safely interrupting the hydraulic flow.
The FM55 series represents a higher performance category, offering a 50 l/min nominal and up to 70 l/min maximum flow rate. The valve is designed for a 300 bar maximum operating pressure, while the built-in pressure relief valve is adjustable between 100–250 bar (factory setting: 140 bar). Thanks to the 1/2" BSP ports, the valve delivers excellent flow performance with minimal pressure loss.
Technical specifications:
- Nominal flow rate: 50 l/min
- Maximum flow rate: 70 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Relief valve setting range: 100–250 bar (factory: 140 bar)
- Number of sections: 2
- Spool type: DD – two double-acting circuits
- Inlet/outlet ports: 1/2" BSP
Applications:
- Paired control of double-acting hydraulic cylinders
- Loader arms, lifting equipment and work machinery
- Control of high-flow hydraulic circuits
- Complex hydraulic systems in industrial and agricultural machinery
The FM55/2 1/2 2P DD valve is an excellent choice for hydraulic applications requiring stable, precise and high-flow control of two independent double-acting circuits in a single monoblock unit.
