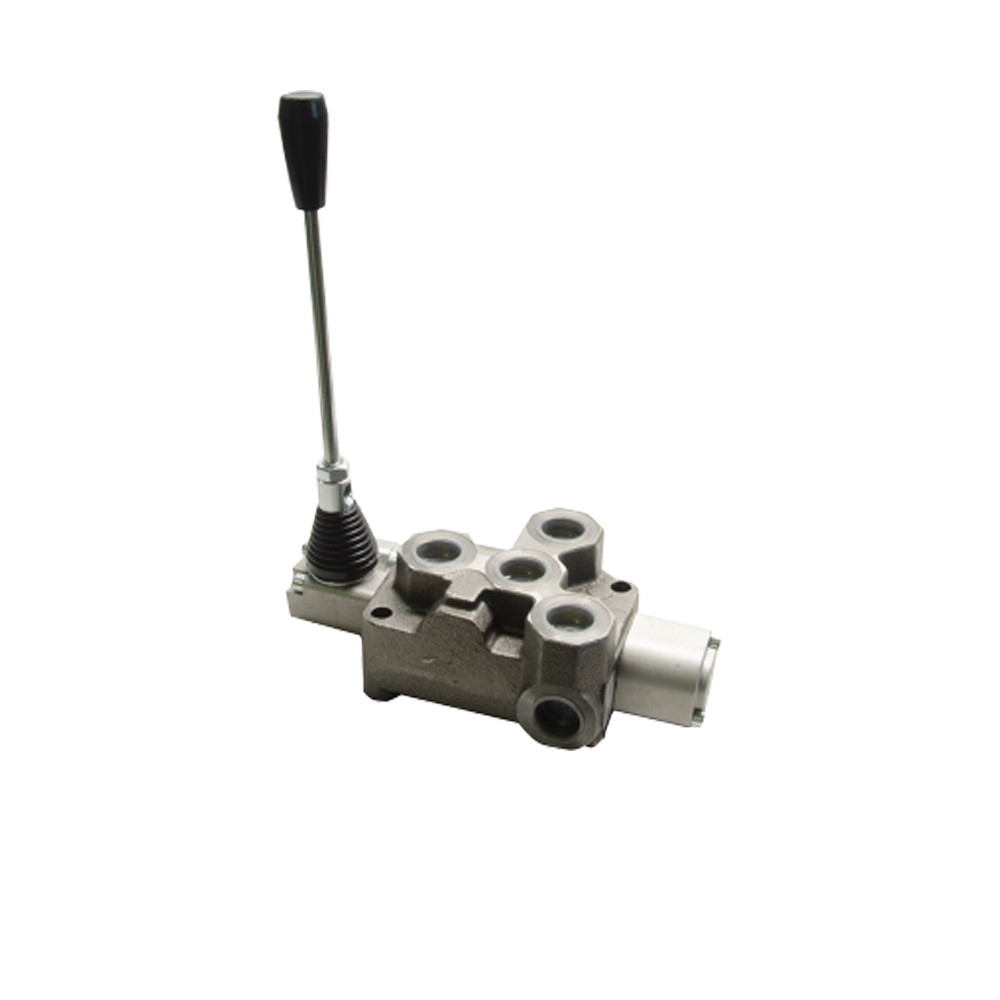

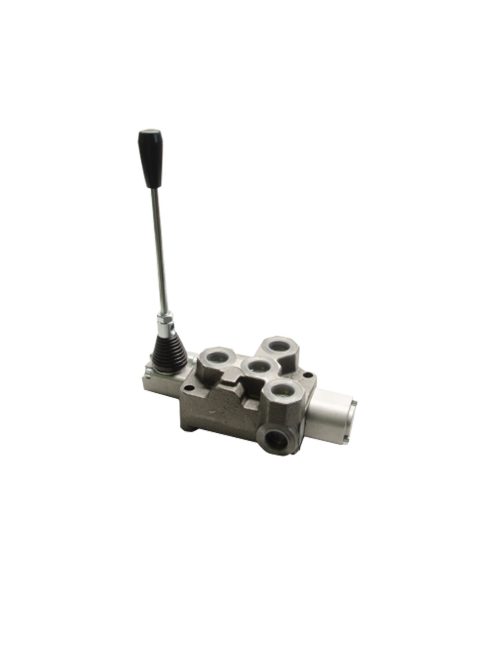

Hydraulic Monoblock Valve FM55/1 1/2 1P DE
Product description:
The FM55/1 1/2 1P DE is a high-performance, single-section hydraulic monoblock directional control valve designed for controlling DE (double effect) – double-acting – hydraulic circuits. The valve is manually operated, and its lever features a spring return mechanism that automatically returns it to the neutral position, ensuring safe interruption of the hydraulic function.
As part of the FM55 series, this valve provides a 50 l/min nominal and up to 70 l/min maximum flow rate, and is designed for 300 bar maximum operating pressure. The integrated pressure relief valve is adjustable between 100–250 bar, factory-set at 140 bar. The 1/2" BSP ports offer high flow capacity with reduced pressure loss.
Technical specifications:
- Nominal flow rate: 50 l/min
- Maximum flow rate: 70 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Relief valve setting range: 100–250 bar (factory: 140 bar)
- Number of sections: 1
- Spool type: DE – double-acting (double effect)
- Inlet/outlet ports: 1/2" BSP
Applications:
- Control of high-flow hydraulic cylinders
- Lifting and handling equipment
- Agricultural and industrial machinery
- Medium to heavy-duty hydraulic systems
The FM55/1 1/2 1P DE valve is an ideal solution for applications requiring reliable and precise control of a high-flow, double-acting hydraulic circuit.
