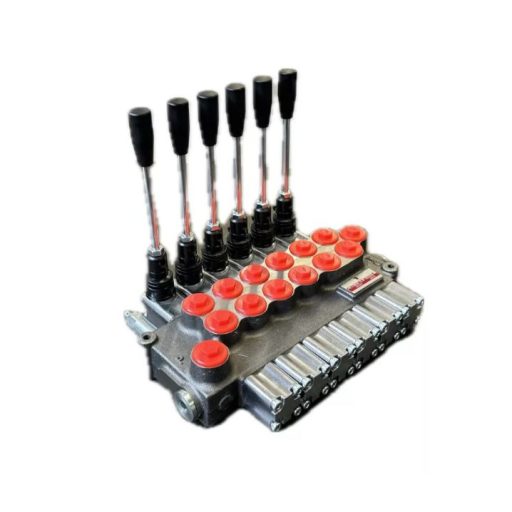

Hydraulic Monoblock Valve FM35/6 3/8 6P SSSSSS
Product Description:
The FM35/6 3/8 6P SSSSSS is a six-section, manually operated hydraulic monoblock directional control valve that provides SE (single effect) – single-acting – control on all six circuits. Each control lever features a spring return to the neutral position, ensuring that the flow is safely shut off in every section as soon as the operator releases the lever.
This configuration is ideal for hydraulic systems requiring the control of multiple gravity-return or externally returned cylinders. The valve is equipped with 3/8" BSP ports, supports a nominal flow rate of 35 l/min, and withstands up to 300 bar maximum operating pressure, making it suitable for heavy-duty, multi-circuit applications.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Number of sections: 6
- Valve type: SSSSSS – six single-acting circuits (single effect)
- Inlet/outlet ports: 3/8" BSP
Applications:
- Gravity-return hydraulic cylinders
- Municipal and agricultural machinery with multiple SE functions
- Tipping, lifting and auxiliary hydraulic operations
- Large multi-circuit systems requiring SE control
The FM35/6 3/8 6P SSSSSS valve is an excellent solution for hydraulic systems that require compact, reliable and safe control of six single-acting circuits.
