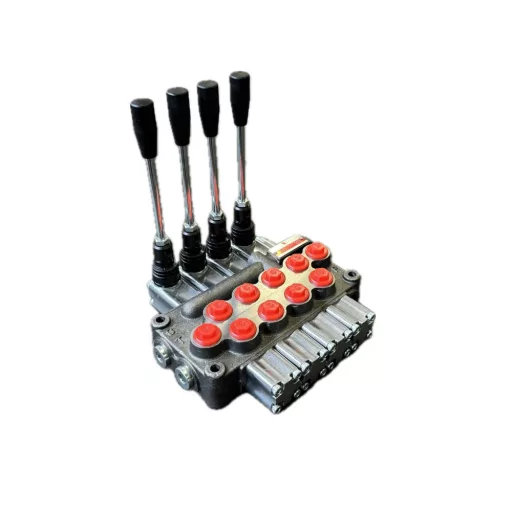

Hydraulic Monoblock Valve FM35/4 3/8 4P DDDD
Product Description:
The FM35/4 3/8 4P DDDD is a four-section, manually operated hydraulic monoblock directional control valve that provides DE (double effect) – double-acting – control on all four circuits. Each lever features a spring return to the neutral position, ensuring that all hydraulic functions are safely interrupted when the operator releases the control.
Equipped with 3/8" BSP ports, the valve is designed for a nominal flow rate of 35 l/min and a maximum operating pressure of 300 bar. The DDDD configuration is ideal for systems requiring precise and independent control of four separate double-acting hydraulic cylinders within a single compact valve block.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Number of sections: 4
- Valve type: DDDD – four double-acting circuits
- Inlet/outlet ports: 3/8" BSP
Applications:
- Four-circuit hydraulic systems
- Complex machine control systems
- Loader and crane mechanisms
- Precise and synchronized control of multiple double-acting cylinders
The FM35/4 3/8 4P DDDD valve is an excellent solution for systems requiring stable, reliable and compact control of a large number of double-acting hydraulic circuits.
