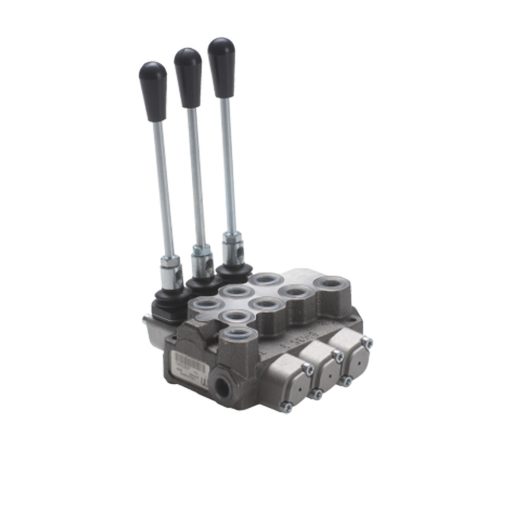

Hydraulic Monoblock Valve FM35/3 3/8 3P DDS
Product Description:
The FM35/3 3/8 3P DDS is a three-section, manually operated hydraulic monoblock directional control valve that provides two DE (double effect) – double-acting – and one SE (single effect) – single-acting – working circuits. All control levers are equipped with a spring return to the neutral position, ensuring that each circuit automatically returns to a safe state when the operator releases the lever.
Equipped with 3/8" BSP ports, the valve is designed for a nominal flow of 35 l/min and a maximum operating pressure of up to 300 bar. The DDS configuration is ideal for systems requiring the combined control of two double-acting and one single-acting function within a compact valve block.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Number of sections: 3
- Valve type: DDS – two double-acting and one single-acting section
- Inlet/outlet ports: 3/8" BSP
Applications:
- Combined hydraulic systems
- Simultaneous control of two DE and one SE circuits
- Agricultural machinery
- Lifting and tipping mechanisms
The FM35/3 3/8 3P DDS valve is an excellent solution when reliable and efficient control of multiple hydraulic functions with different operating modes is required in a single monoblock unit.
