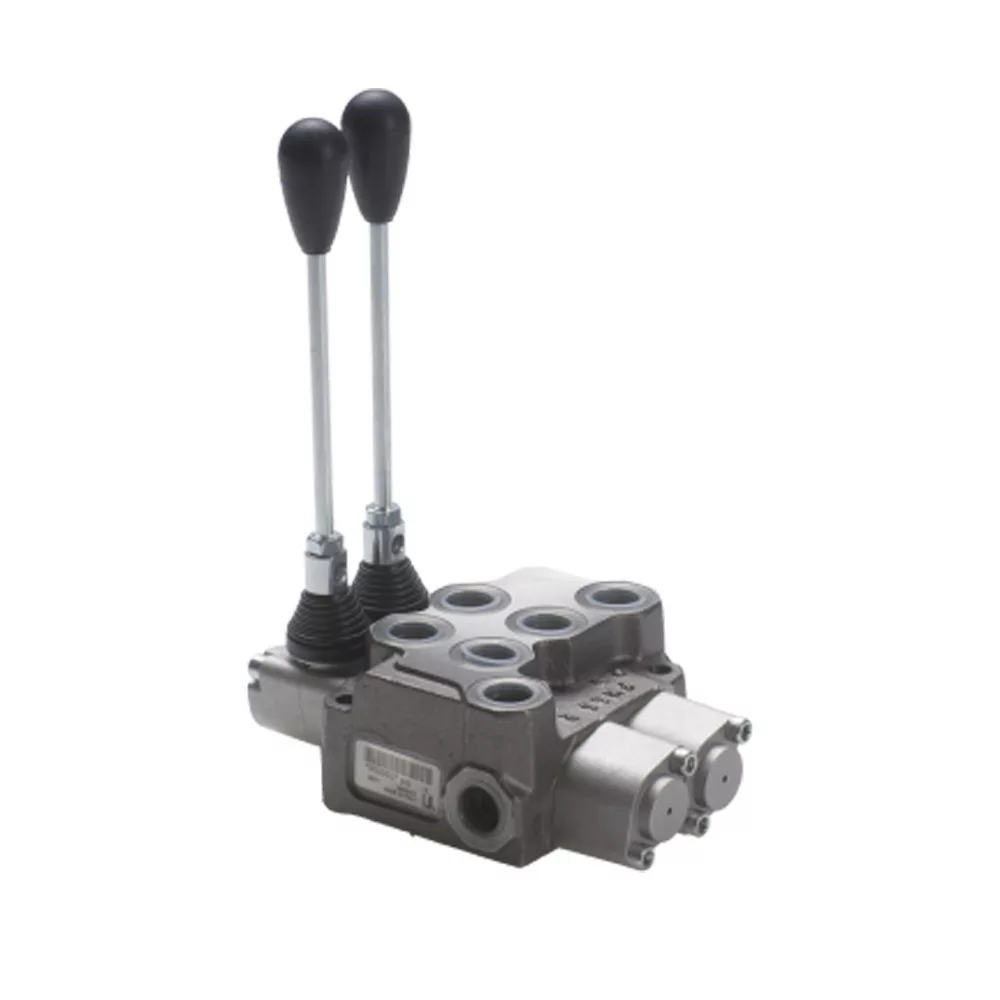

Hydraulic Monoblock Valve FM35/2 3/8 2P SS
Product Description:
The FM35/2 3/8 2P SS is a two-section, manually operated hydraulic monoblock directional control valve that provides SE (single effect) – single-acting – control on both circuits. Each spool is equipped with a spring return to the neutral position, ensuring safe and stable operation at all times.
The SS configuration is ideal for hydraulic systems where both working circuits operate with gravity or external-force return. The valve features 3/8" BSP ports, a nominal flow rate of 35 l/min, and a maximum operating pressure of 300 bar.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Number of sections: 2
- Valve type: SS – two single-acting circuits (single effect)
- Inlet/outlet ports: 3/8" BSP
- Dimensions: I = 80 mm / L = 115.5 mm
Applications:
- Gravity-return hydraulic cylinders
- Tipping mechanisms and simple lifting applications
- Compact and mobile hydraulic systems
- Machinery requiring two single-acting circuits
The FM35/2 3/8 2P SS valve is an excellent choice for systems requiring reliable, simple control of two single-acting hydraulic circuits in a compact design.
