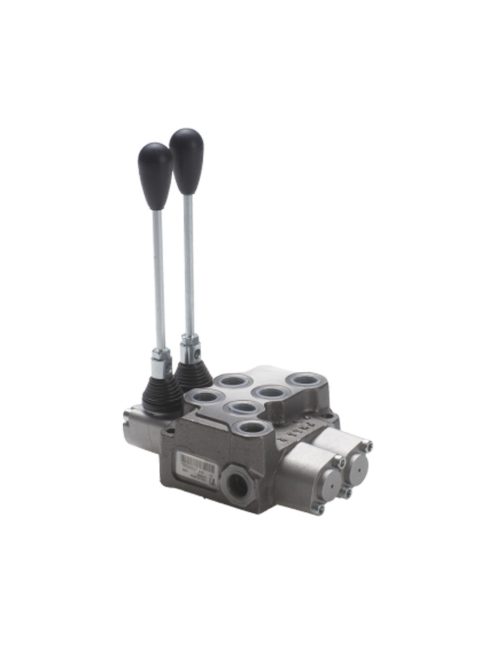

Hydraulic Monoblock Valve FM35/2 3/8 2P DS
Product Description:
The FM35/2 3/8 2P DS is a two-section, manually operated hydraulic monoblock directional control valve. Thanks to its DS configuration, it provides one DE (double effect) – double-acting – and one SE (single effect) – single-acting – working circuit. Both valve spools feature a spring return to the neutral position, ensuring safe, stable and easy operation.
Equipped with 3/8" BSP ports, the FM35 series offers a compact and reliable solution with a nominal flow rate of 35 l/min and a maximum operating pressure of up to 300 bar. This configuration is ideal for systems requiring the control of one double-acting cylinder and one gravity-return (single-acting) cylinder — or potentially a hydraulic motor — within a single valve block.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Number of sections: 2
- Valve type: DS – one double-acting and one single-acting circuit
- Inlet/outlet ports: 3/8" BSP
Applications:
- Mixed-operation hydraulic systems
- Combined control of double-acting and single-acting cylinders
- Agricultural and industrial machinery
- Lifting, tipping and auxiliary hydraulic functions
The FM35/2 3/8 2P DS valve is an excellent choice when safe, reliable control of different hydraulic functions is required within a single compact monoblock valve.
