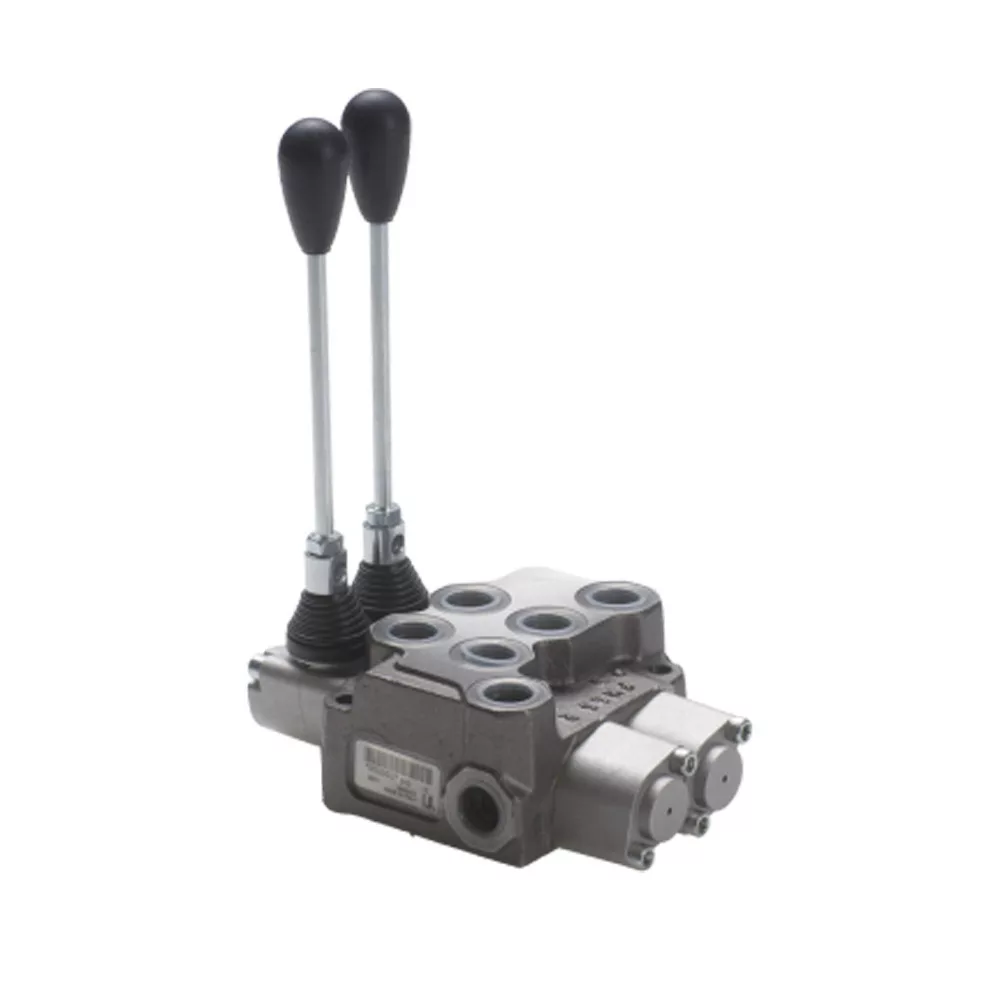

Hydraulic Monoblock Valve FM35/2 3/8 2P DD
Product Description:
The FM35/2 3/8 2P DD is a two-section, manually operated hydraulic monoblock directional control valve that provides DE (double effect) – double-acting – control on both circuits. Each spool features a spring return to the neutral position, ensuring the circuits automatically and safely shut off when the lever is released.
Equipped with 3/8" BSP ports, the FM35 series offers a compact and reliable design with a nominal flow capacity of 35 l/min and a maximum operating pressure of up to 300 bar. The DD configuration means that both valve sections are double-acting, making it an ideal solution for the precise and independent control of two hydraulic cylinders.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Number of sections: 2
- Valve type: DD – two double-acting circuits (double effect)
- Inlet/outlet ports: 3/8" BSP
Applications:
- Two-circuit hydraulic systems
- Lifting mechanisms and loader arms
- Mobile hydraulics – tractors and work machinery
- Precise control of double-acting cylinders
The FM35/2 3/8 2P DD valve is an excellent choice for applications requiring reliable and independent control of two double-acting hydraulic circuits, combined with high pressure capability and a compact design.
