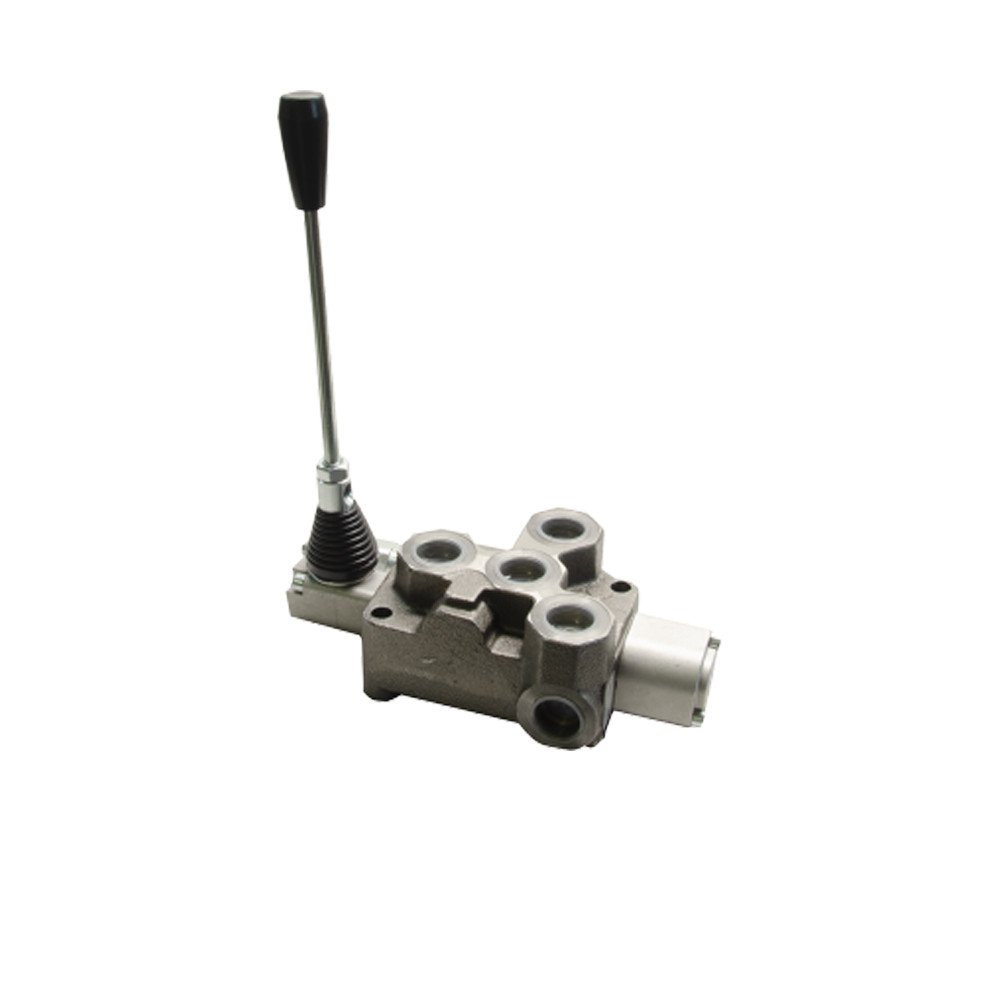

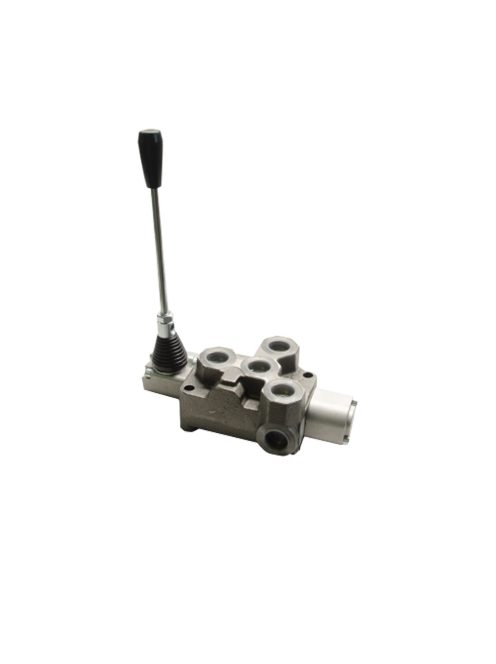

Hydraulic Monoblock Valve FM35/1 3/8 1P M
Product Description:
The FM35/1 3/8 1P M is a compact, single-spool hydraulic monoblock directional control valve with manual operation and spring return to the neutral position. The M (motor spool) version is specifically optimized for hydraulic motor control, featuring a low-pressure-drop flow path and a spool design suitable for continuous flow. This ensures smooth, vibration-free motor operation and stable control even under load.
The valve is equipped with 3/8" BSP ports, supports a nominal flow of 35 l/min, and withstands up to 300 bar maximum operating pressure. Like all models in the FM35 series, it is durable, highly reliable, and suitable for both mobile and industrial hydraulic environments.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Number of sections: 1
- Valve type: M – motor spool (for hydraulic motor control)
- Inlet/outlet ports: 3/8" BSP
Applications:
- Hydraulic motor control
- Mixers and drive units
- Conveyor augers, sweepers
- Mobile hydraulic systems requiring continuous-flow circuits
The FM35/1 3/8 1P M valve is an excellent choice for applications requiring precise and reliable control of hydraulic motors, combined with high durability and strong pressure capability.
