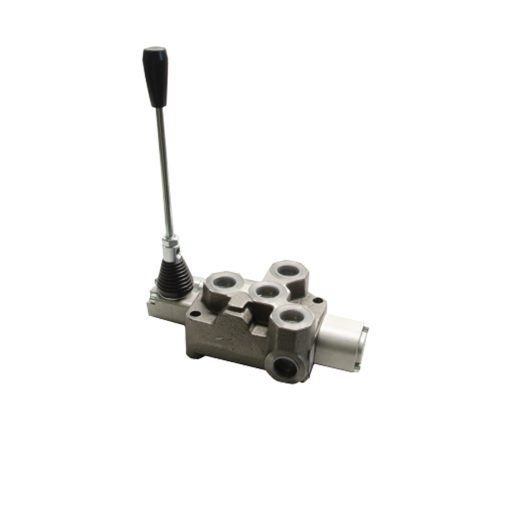

Hydraulic Monoblock Valve FM35/1 3/8 1P DE
Product Description:
The FM35/1 3/8 1P DE is a compact, single-spool hydraulic monoblock directional control valve with manual operation and a spring return to the neutral position. The DE (double effect) designation indicates that the valve is designed for controlling a double-acting circuit, making it ideal for the precise actuation of cylinders or motors in both mobile and industrial hydraulic systems.
The valve features an integrated pressure relief valve (adjustable 100–250 bar, factory set to 140 bar) to protect the system from overload. With 3/8" BSP ports and a nominal flow rate of 35 l/min, it delivers reliable and efficient performance in a compact design.
Technical Specifications:
- Nominal flow rate: 35 l/min
- Maximum flow rate: 35 l/min
- Nominal pressure: 280 bar
- Maximum operating pressure: 300 bar
- Max. tank line pressure: 80 bar
- Pressure relief range: 100–250 bar (factory set to 140 bar)
- Number of sections: 1
- Valve type: DE – double-acting
- Inlet/outlet ports: 3/8" BSP
Applications:
- Agricultural machinery
- Lifting and loading equipment
- Industrial hydraulic actuator control
- Compact hydraulic systems
The FM35 series provides a durable, reliable and easy-to-install solution for hydraulic applications requiring stable flow control, high pressure capability and long service life.
