3 WAY DIVERTER BSP 1/2"

Name: 3 WAY DIVERTER BSP 1/2"
Brand: DICSA
SKU: HK_D3V12
Price: 88 EUR
Availability: InStock

Type of valve: System integrable valve

Type of block: 3 ways ball valve

Max. pressure: 280 bar

Connection: 1/2" BSP

Max. flow rate: 90 l/m

Pipe / Hose connection: BSP

Thread location: INNER

Manufacturer: DICSA

Datasheet: Kattintson ide a letöltéshez

In stock

69 €+VAT

Item number:

HK_D3V12

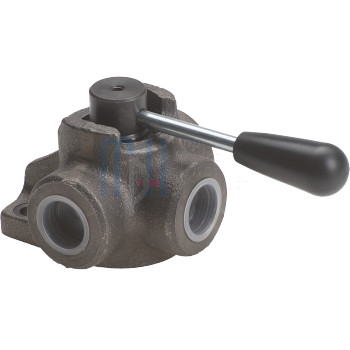

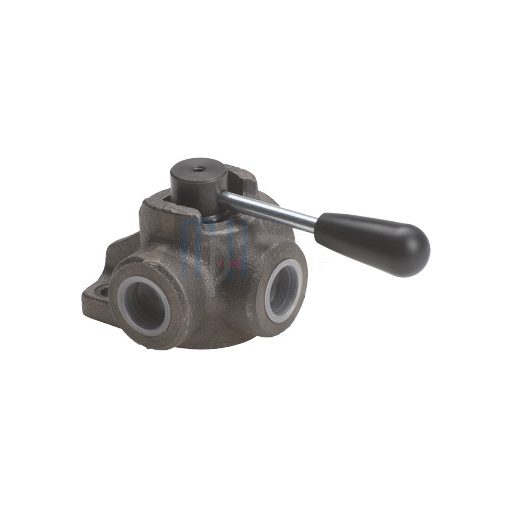

D3V12 1/2” BSP – 3-way manual change-over valve

Product description:

The D3V12 3-way manual change-over valve is used in hydraulic systems for flow direction control and switching. It features BSP female threaded ports and a cast iron housing, providing high mechanical strength and long service life. Its manual operation ensures reliable and simple handling in industrial and truck hydraulic systems.

Key features:

Type: 3-way manual change-over valve
Part number: D3V12
Connection (R1): 1/2” BSP female thread
Maximum flow rate: 90 l/min
Maximum operating pressure: 280 bar
Housing material: Cast iron

Data

Weight:

600 g/pc(s)

Details

Operating Principle

This 3/2 valve has three ports (two outlets and one inlet) and two operating positions. In the default position, hydraulic oil flows through one specific outlet while the other remains closed. By moving the lever, the flow path is reversed, allowing a different function or process to be activated. This operation is ideal for systems where a machine or device needs to alternate between two distinct functions.
