3 WAY DIVERTER BSP 1"

Name: 3 WAY DIVERTER BSP 1"
Brand: DICSA
SKU: HK_D3V10
Price: 121 EUR
Availability: InStock

Type of valve: System integrable valve

Type of block: 3 ways ball valve

Max. pressure: 220 bar

Connection: 1" BSP

Max. flow rate: 200 l/m

Pipe / Hose connection: BSP

Thread location: INNER

Manufacturer: DICSA

Datasheet: Kattintson ide a letöltéshez

In stock

95 €+VAT

Item number:

HK_D3V10

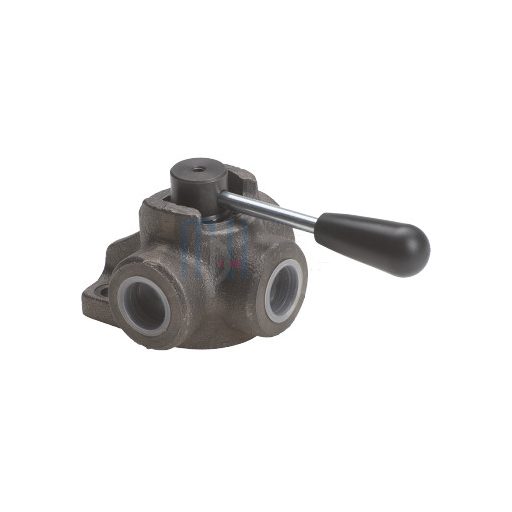

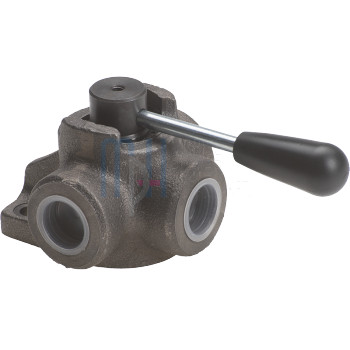

D3V10 1” BSP – 3-way manual change-over valve

Product description:

The D3V10 3-way manual change-over valve is used in hydraulic systems for flow direction control and switching. It features BSP female threaded ports and a cast iron housing, providing high mechanical strength and long service life. Its manual operation ensures reliable and simple handling in industrial and truck hydraulic systems.

Key features:

Type: 3-way manual change-over valve
Part number: D3V10
Connection (R1): 1” BSP female thread
Maximum flow rate: 200 l/min
Maximum operating pressure: 220 bar
Housing material: Cast iron

Data

Weight:

1.1 kg/pc(s)

Details

Operating Principle

The 3/2 directional control valve features three ports and two operating positions. In its default position, one inlet is closed while fluid can freely flow between the other two ports. By moving the lever, the flow path changes: the previously closed port opens and the other closes. This allows for easy redirection of hydraulic oil between two different devices or circuits.
