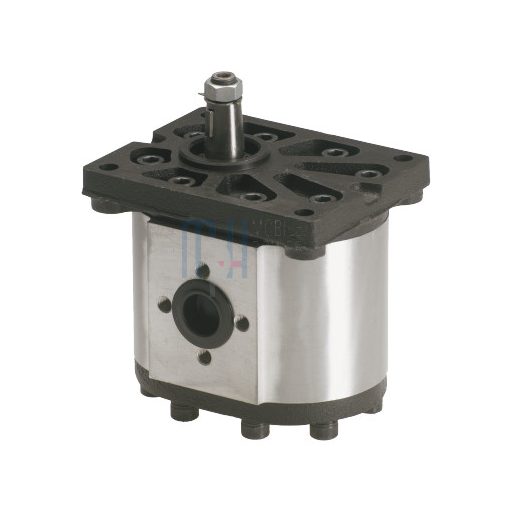

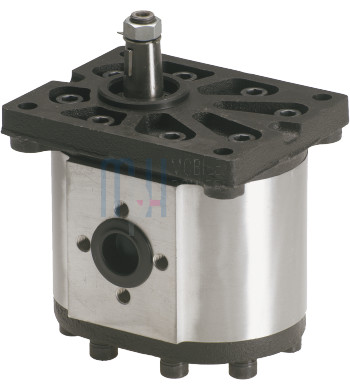

BTD3460D02 Gear Pump
Product Description:
High-performance Group III hydraulic gear pump with right-hand rotation. European flange version with tapered shaft (1:8) and side port configuration (Side ports type Eur.). Robust cast-iron housing designed for high-pressure, heavy-duty hydraulic applications.
Main Features:
- Rotation: Right-hand (D)
- Suction port (ØA): 50 mm
- Pressure port (ØB): 40 mm
- Pressure port thread: M10 / M8 (depending on size)
- Maximum operating pressure: 200 bar
- Peak pressure: 250 bar
- Maximum speed: 2400 rpm
- Displacement: 46 cm³/rev
- Material: cast iron housing and cover
- Minimum speed: 400 rpm
- Torque: 45–50 Nm
Applications:
Ideal for high-performance industrial, agricultural and mobile hydraulic systems such as machinery, lifting systems and construction equipment.
