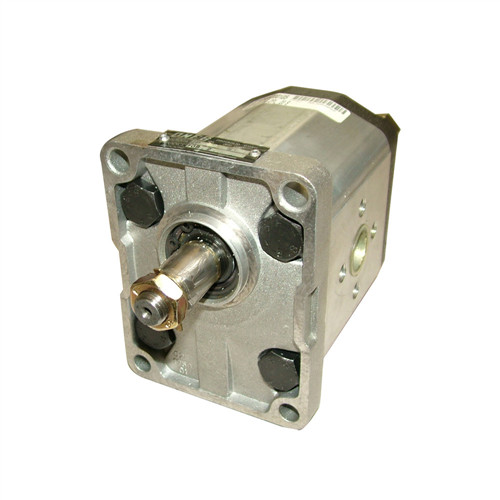

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 8CCM 1:8 LEFT

Name: INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 8CCM 1:8 LEFT
Brand: TRALE
SKU: HK_BTD280I01
Price: 153 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 8

Max. pressure (bar): 255

Design: Gear pump

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Left

Manufacturer: TRALE

Manufacturer part number: BTD280I01

Available to order

121 €+VAT

Item number:

HK_BTD280I01

BTD280I01 Gear Pump

Product Description:
Medium-duty Group 2 hydraulic gear pump with left-hand rotation. European flange design with 1:8 tapered shaft and threaded side ports. Reliable operation, compact construction and durable aluminium housing.

Main Features:

Rotation: left-hand (I)
Inlet port (R1): 1/2" BSP
Outlet port (R2): 1/2" BSP
Max. working pressure: 250 bar
Peak pressure: 300 bar
Max. speed: 3500 rpm
Displacement: 8 cm³/rev
Material: aluminium housing and cover
Min. speed: 500 rpm

Applications:
Ideal for industrial, agricultural and mobile hydraulic systems where compact size and reliable performance are required.

Data

Weight:

4 kg/pc(s)

Details

Operating principle

The pump uses two intermeshing gears that create a vacuum on the inlet side as they rotate. This vacuum draws hydraulic oil into the pump housing. The gears then carry the oil along the casing wall to the outlet side. Tight internal tolerances prevent backflow and help maintain pressure. Since it's a fixed displacement pump, it delivers the same amount of oil with every revolution.

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 8CCM 1:8 LEFT

121 €+VAT
