INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 6CCM 1:8
Details

Operating principle

The pump works with two meshing gears that rotate and create a vacuum at the inlet side. This vacuum draws hydraulic oil into the pump housing. The gears carry the oil along the housing wall toward the outlet side. Tight internal tolerances prevent backflow and maintain pressure stability. With fixed displacement, each rotation delivers the same volume of oil for predictable performance.

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 6CCM 1:8

Article No.:
HK_BTD260D01
Available for order
93+VAT

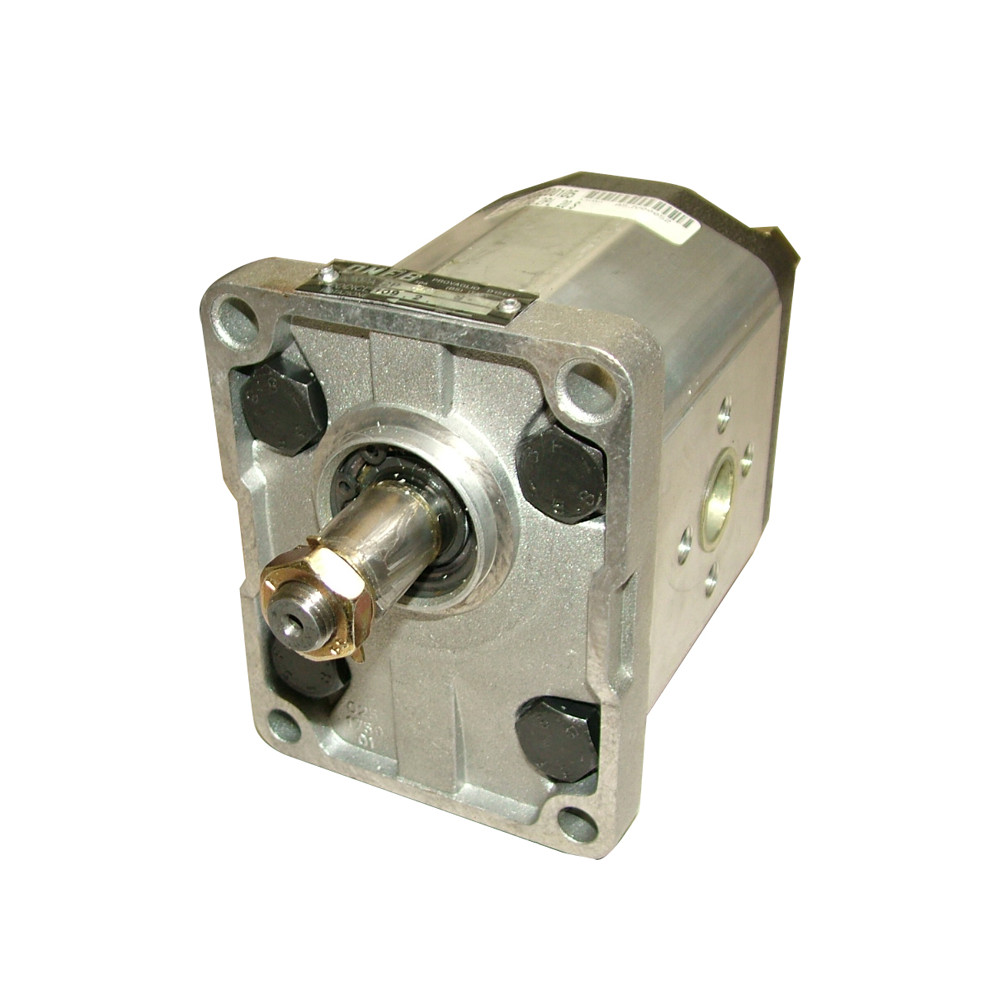

The 2ÉP 6 ccm/rev right-hand industrial gear hydraulic pump is a compact and efficient solution for low-flow, high-pressure hydraulic systems. With a displacement of 6 cm³ per revolution and a maximum operating pressure of up to 250 bar, it ensures reliable performance in various industrial and agricultural applications.

The pump features a 1:8 tapered shaft and standard BSP threaded ports, facilitating easy integration into existing systems. Its durable construction and straightforward design provide a long service life and low maintenance requirements, making it a cost-effective choice for diverse uses.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 6
Max. pressure (bar): 250
Design: Gear pump
Variable / Fixed displacement: Constant volume displacement hydraulic pump
Direction of rotation: Right
Manufacturer: TRALE
Manufacturer part number: BTD260D01
Info
Weight:
2.3 kg/pc(s)
