INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 4CCM

Name: INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 4CCM
Brand: TRALE
SKU: HK_BTD240D01
Price: 166 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 4

Max. pressure (bar): 250

Design: Gear pump

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Right

Manufacturer: TRALE

Manufacturer part number: BTD240D01

Available to order

131 €+VAT

Item number:

HK_BTD240D01

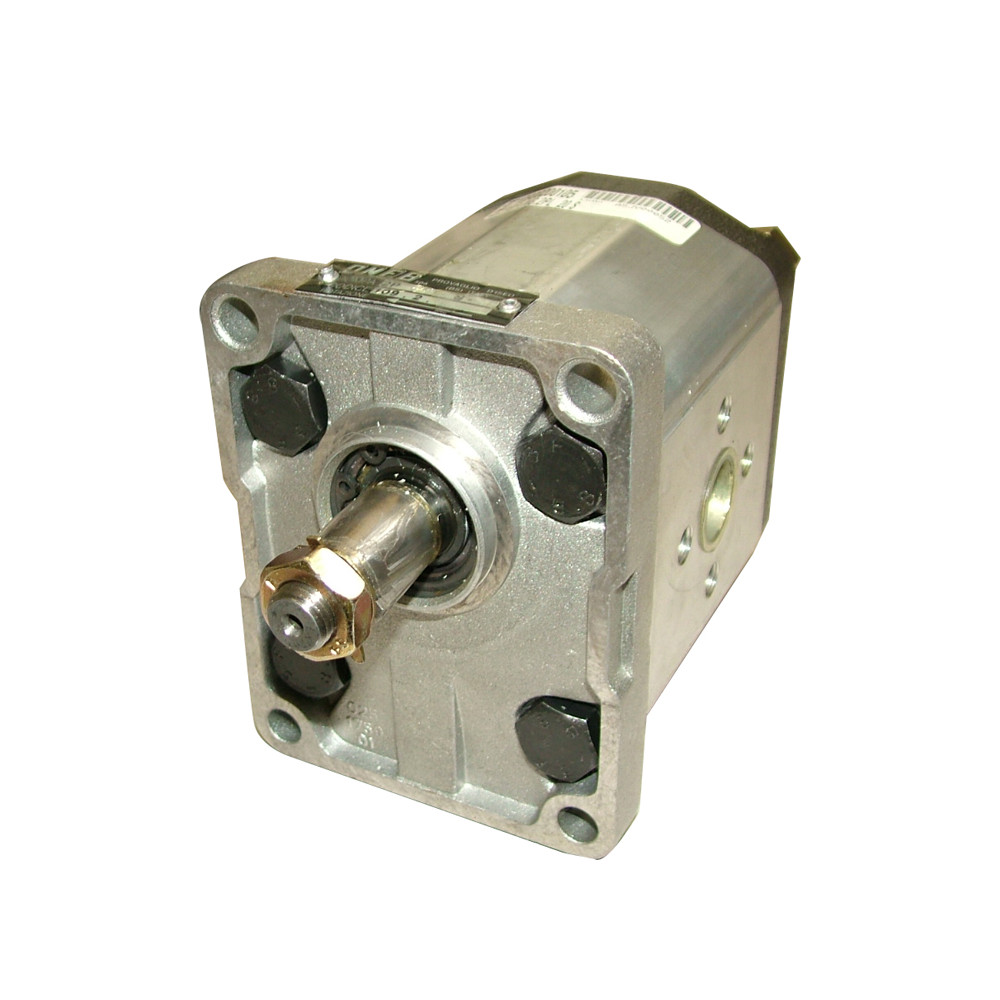

BTD240D01 Gear Pump

Product Description:
Compact, precision-engineered Group 2 hydraulic gear pump with right-hand rotation. European flange design with 1:8 tapered shaft and threaded side ports. Provides reliable performance and long service life, even in smaller hydraulic systems.

Main Features:

Rotation: right-hand (D)
Inlet port (R1): 1/2" BSP
Outlet port (R2): 1/2" BSP
Max. working pressure: 250 bar
Peak pressure: 300 bar
Max. speed: 3500 rpm
Displacement: 4 cm³/rev
Material: aluminium housing and cover
Min. speed: 500 rpm
Noise level: 70 dB
Torque: 45–50 Nm

Applications:
Ideal for smaller hydraulic systems in industrial, agricultural and mobile applications requiring reliability and efficiency.

Data

Weight:

2.2 kg/pc(s)

Details

Operating principle

The pump operates using two intermeshing gears that draw in hydraulic oil on the inlet side. As the gear teeth separate, a vacuum forms and pulls oil into the pump housing. The gears then move the oil along the casing wall to the outlet side. Tight tolerances prevent backflow, ensuring pressure remains stable. With fixed displacement, the pump transfers the same volume of oil with every rotation for precise and consistent flow.
