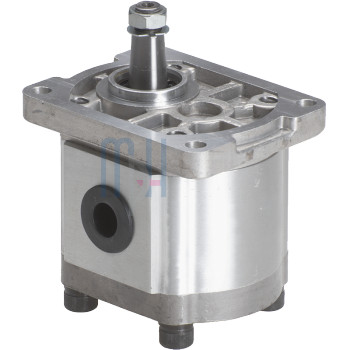

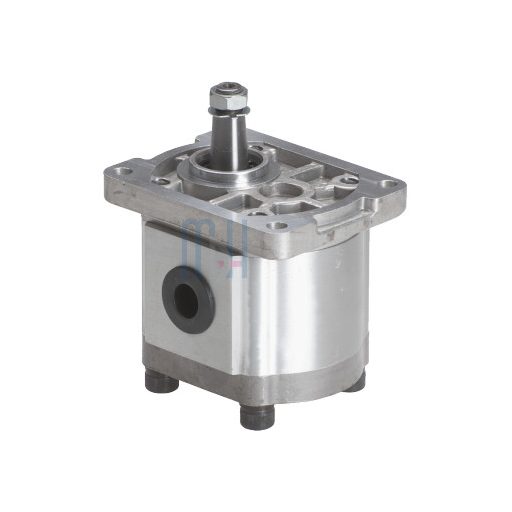

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 25CCM 1:8

Name: INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 25CCM 1:8
Brand: TRALE
SKU: HK_BTD2250D01
Price: 166 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 25

Max. pressure (bar): 250

Design: Gear pump

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Right

Manufacturer: TRALE

Manufacturer part number: BTD2250D01

Available to order

131 €+VAT

Item number:

HK_BTD2250D01

BTD2250D01 Gear Pump

Product Description:
High-performance Group 2 hydraulic gear pump with right-hand rotation. European flange design with 1:8 tapered shaft and threaded side ports. An excellent choice for high-pressure, high-flow hydraulic systems.

Main Features:

Rotation: right-hand (D)
Inlet port (R1): 3/4" BSP
Outlet port (R2): 1/2" BSP
Max. working pressure: 200 bar
Peak pressure: 250 bar
Max. speed: 3000 rpm
Displacement: 25 cm³/rev
Material: aluminium housing and cover
Min. speed: 500 rpm
Noise level: 70 dB
Torque: 45–50 Nm

Applications:
Ideal for high-performance industrial and mobile hydraulic systems, such as machinery, lifting equipment and agricultural applications.

Data

Weight:

4 kg/pc(s)

Details

Operating principle

The pump uses two intermeshing gears to draw in and transfer hydraulic oil. As the teeth separate at the inlet side, a vacuum forms and pulls oil into the pump housing. The gears then move the oil along the casing to the outlet side. Precision-fit internal components prevent backflow and maintain consistent pressure. Since the displacement is fixed, each rotation transfers the same volume of oil.
