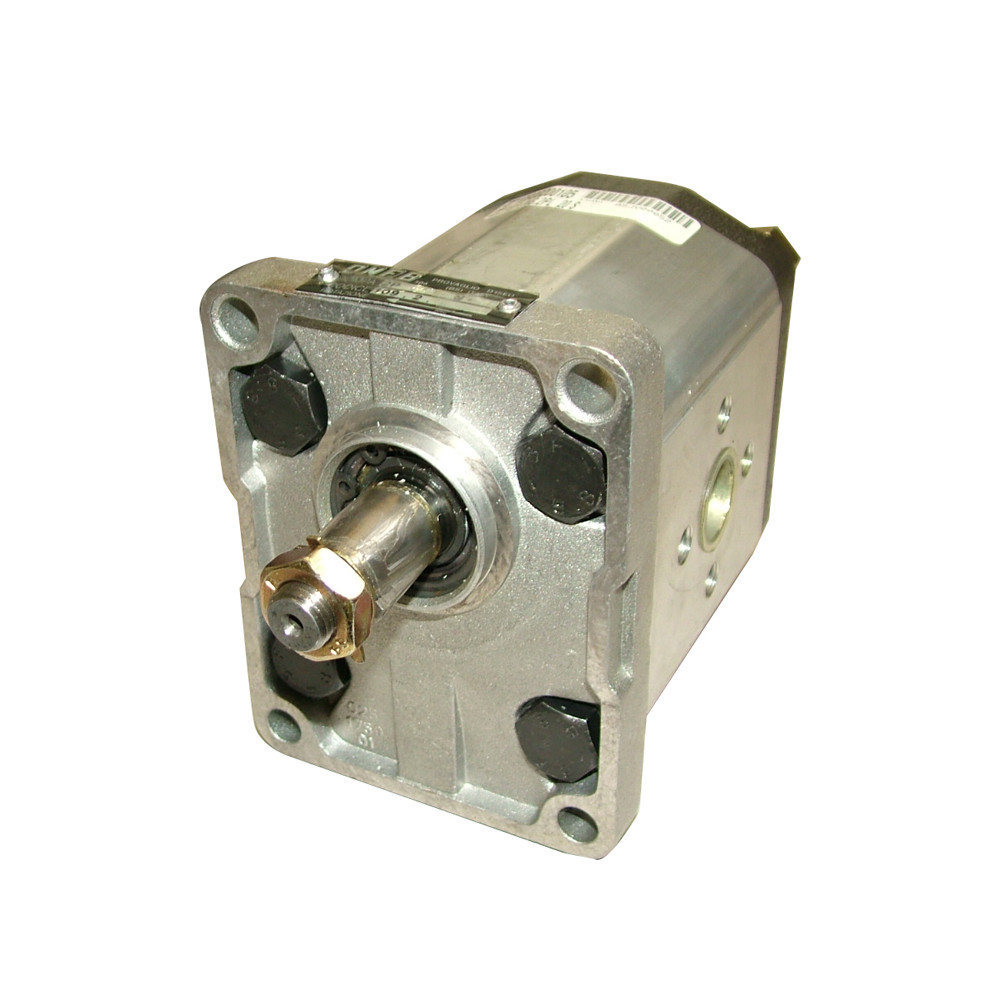

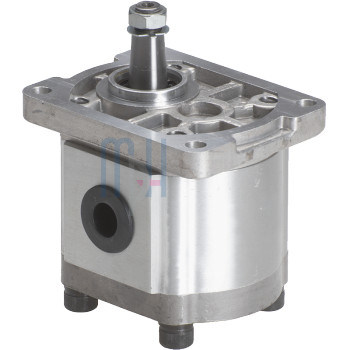

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 14CCM 1:8

Details

Operating principle

The pump operates with two intermeshing gears that move hydraulic oil through the system. As the gear teeth separate at the inlet, a vacuum draws oil into the pump body. The gears carry the oil along the casing to the outlet side. Tight internal tolerances prevent backflow and maintain pressure efficiency. The fixed displacement ensures that each rotation delivers an exact amount of oil.

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 14CCM 1:8

Name: INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 14CCM 1:8
Brand: TRALE
SKU: HK_BTD2140D01
Price: 111 EUR
Availability: InStock

Article No.:

HK_BTD2140D01

Available for order

87 €+VAT

The Gr. II 14 ccm/rev right-hand industrial gear hydraulic pump is a reliable and efficient component designed for medium-duty hydraulic systems. With a displacement of 14 cm³ per revolution and a maximum operating pressure of up to 250 bar, it ensures consistent performance across various industrial and agricultural applications.

The pump features a 1:8 tapered shaft and standard BSP threaded ports, facilitating easy integration into existing systems. Its durable construction and straightforward design provide a long service life and low maintenance requirements, making it a cost-effective choice for diverse uses.

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 14

Max. pressure (bar): 250

Design: Gear pump

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Right

Manufacturer: TRALE

Manufacturer part number: BTD2140D01

Info

Weight:

2.64 kg/pc(s)

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 14CCM 1:8

87 €+VAT
