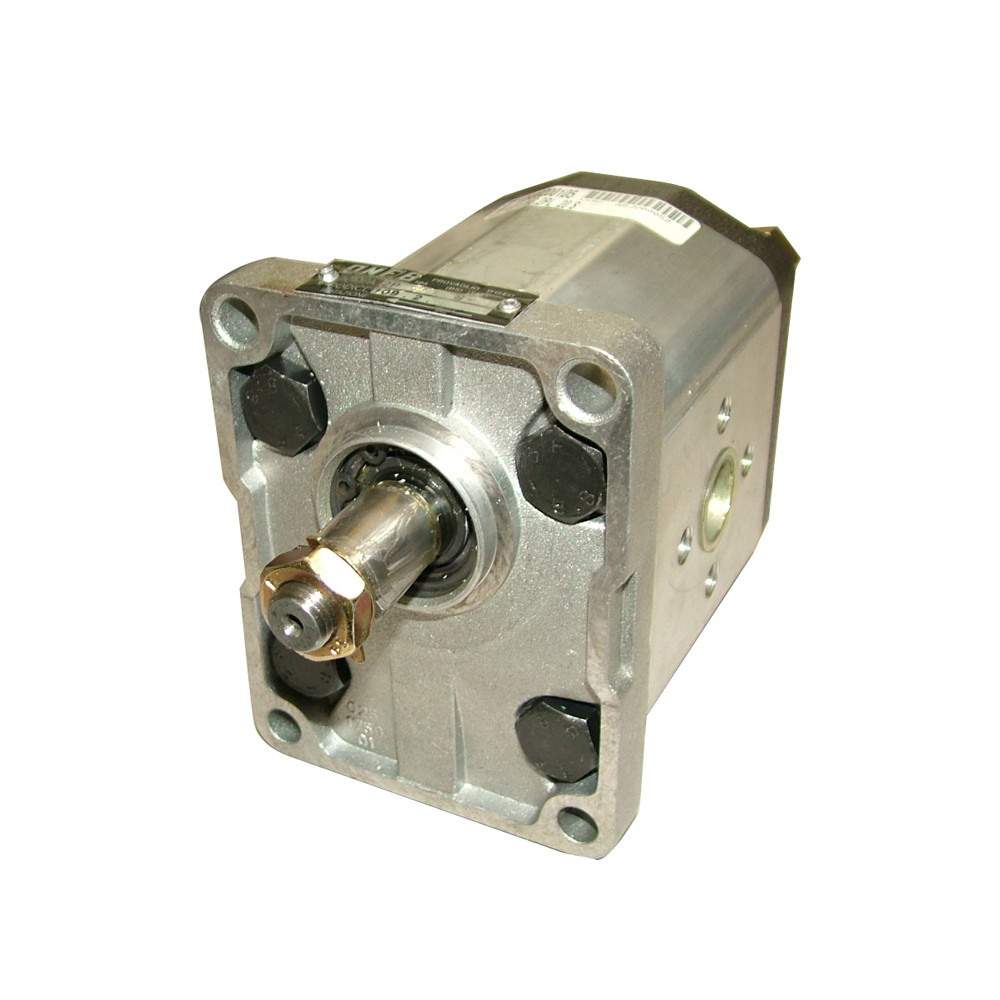

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 10CCM
Details

Operating principle

The pump uses two interlocking gears to move hydraulic oil. As the gear teeth disengage at the inlet, a vacuum is formed and oil is drawn in. The fluid then travels around the casing to the outlet side, pushed by the rotation of the gears. Tight tolerances prevent backflow and ensure efficient pressure buildup. With fixed displacement, each revolution transfers the same oil volume, delivering consistent output.

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.II 10CCM

Article No.:
HK_BTD2100D01
Available for order
122+VAT

The 2ÉP 10 ccm/rev right-hand industrial gear hydraulic pump is a reliable and efficient solution for medium-duty hydraulic systems. With a displacement of 10 cm³ per revolution and a maximum operating pressure of up to 250 bar, it ensures consistent performance across various industrial and agricultural applications.

The pump features a 1:8 tapered shaft and standard BSP 1/2" threaded ports, facilitating easy integration into existing systems. Its durable construction and straightforward design provide a long service life and low maintenance requirements, making it a cost-effective choice for diverse uses.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 10
Max. pressure (bar): 250
Design: Gear pump
Variable / Fixed displacement: Constant volume displacement hydraulic pump
Direction of rotation: Right
Manufacturer: TRALE
Manufacturer part number: BTD2100D01
Info
Weight:
1 kg/pc(s)
