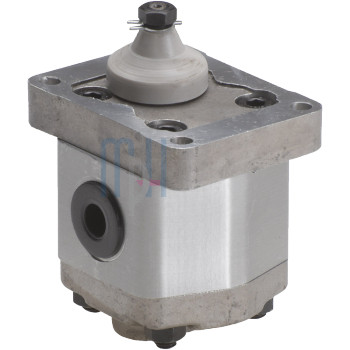

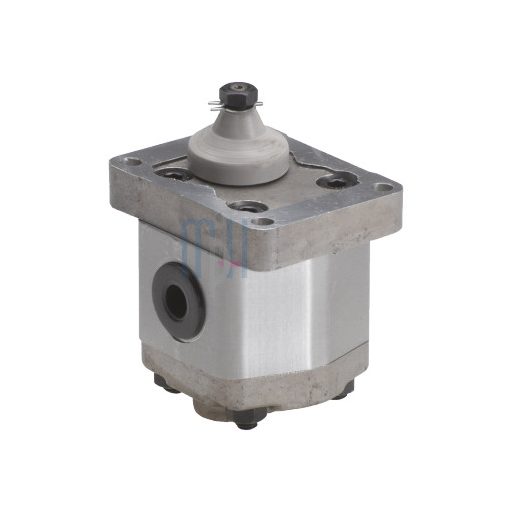

BTD180I01 Gear Pump
Product Description:
High-flow Group 1 hydraulic gear pump with left-hand rotation. Designed with a European flange, tapered shaft (1:8), and threaded side ports. Robust aluminium construction for industrial and mobile hydraulic systems.
Main Features:
- Rotation: left-hand (I)
- Inlet port (R1): 1/2" BSP
- Outlet port (R2): 3/8" BSP
- Max. working pressure: 200 bar
- Peak pressure: 250 bar
- Max. speed: 2100 rpm
- Displacement: 8 cm³/rev
- Material: aluminium housing and cover
- Min. speed: 600 rpm
Applications:
Ideal for industrial, agricultural, and mobile hydraulic systems requiring stable pressure and long service life.
