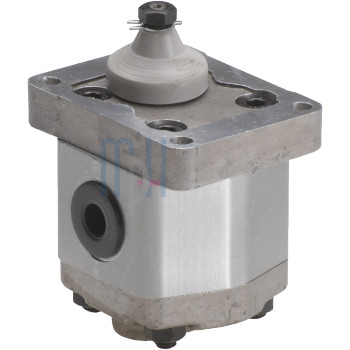

BTD180D01 Gear Pump – Right-Hand Rotation
Product Description:
High-performance Group 1 hydraulic gear pump with right-hand rotation. Features a European flange, tapered shaft (1:8), and threaded side ports. A robust and reliable solution for systems requiring higher flow rates.
Main Features:
- Rotation: right-hand (D)
- Inlet port (R1): 1/2" BSP
- Outlet port (R2): 3/8" BSP
- Max. working pressure: 200 bar
- Peak pressure: 250 bar
- Max. speed: 2100 rpm
- Displacement: 8.0 cm³/rev
- Material: aluminium housing and cover
- Min. speed: 600 rpm
- Torque: 25–30 Nm
Applications:
Ideal for medium and higher-performance hydraulic systems, agricultural machinery, industrial equipment, and mobile machines.
