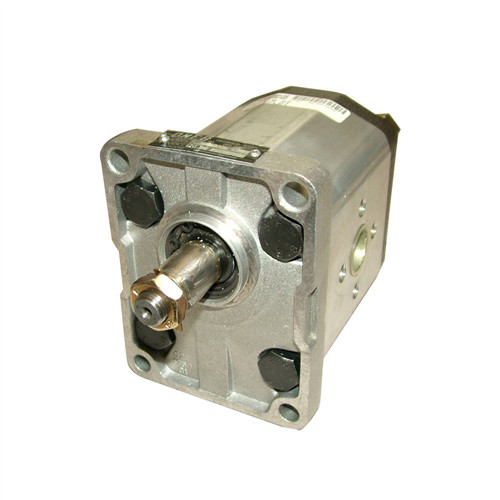

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.I. 4,8CCM RIGHT 1:8
Details

Operating principle

The pump uses two intermeshing gears to move hydraulic oil. As the gears rotate, a vacuum is created at the inlet side, drawing oil into the spaces between the teeth. The oil is then carried around the housing and forced out at high pressure on the outlet side. Precision tolerances between gears and casing prevent backflow, ensuring efficient suction and delivery. With a fixed displacement, each revolution transfers the same volume of oil, providing stable and repeatable performance.

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.I. 4,8CCM RIGHT 1:8

Article No.:
HK_BTD148D01
Out of stock
74+VAT

The 1ÉP 4.8 ccm/rev right-hand industrial gear hydraulic pump is a compact and reliable solution for low to medium-power hydraulic systems. With a displacement of 4.8 cm³ per revolution and a maximum operating pressure of up to 190 bar, it ensures efficient performance in various applications, including small machinery and industrial automation. Its right-hand rotation design allows for easy integration into existing systems.

The pump's simple construction and robust design ensure a long service life and low maintenance requirements, making it a cost-effective choice for both industrial and agricultural use.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 4.8
Max. pressure (bar): 250
Design: Ipari fogaskerekes hidraulika szivattyú
Variable / Fixed displacement: Állandó térfogat kiszorítású hidraulika szivattyú
Direction of rotation: Right
Manufacturer: OTHER
Manufacturer part number: BTD148D01
Info
Weight:
800 g/pc(s)
