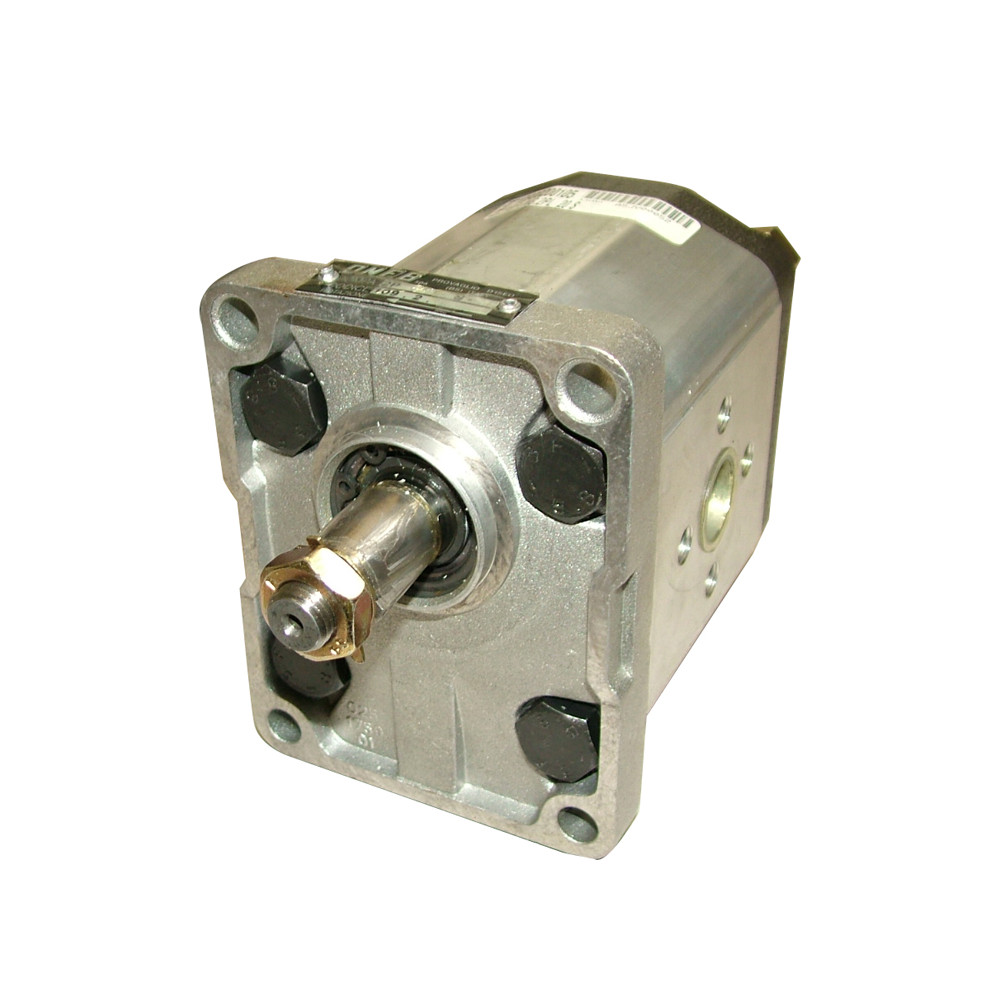

INDUSTRIAL HYDRAULIC GEAR PUMP Gr.I 3,7CCM

Name: INDUSTRIAL HYDRAULIC GEAR PUMP Gr.I 3,7CCM
Brand: TRALE
SKU: HK_BTD137D01
Price: 75 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 3.7

Max. pressure (bar): 250

Design: Gear pump

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Right

Manufacturer: TRALE

Manufacturer part number: BTD137D01

Available to order

59 €+VAT

Item number:

HK_BTD137D01

BTD137D01 Gear Pump

Product Description:
Compact and reliable Group 1 hydraulic gear pump with right-hand rotation. Equipped with a European flange and a tapered shaft (1:8 ratio), featuring threaded side ports. An excellent choice for small and medium hydraulic systems.

Main Features:

Rotation: right-hand (D)
Inlet port (R1): 3/8" BSP
Outlet port (R2): 3/8" BSP
Max. working pressure: 250 bar
Peak pressure: 300 bar
Max. speed: 4500 rpm
Displacement: 3.7 cm³/rev
Material: aluminium housing and cover
Min. speed: 600 rpm
Torque: 25–30 Nm

Applications:
Ideal for industrial and mobile hydraulic systems, agricultural machinery, and light-duty equipment.

Data

Weight:

800 g/pc(s)

Details

Operating principle

This gear pump uses two interlocking gears to generate hydraulic pressure: one gear draws in oil while the other pushes it onward toward the pressure port. The oil flows through sealed chambers, minimizing backflow and maximizing volumetric efficiency. The right‑hand (clockwise) rotation ensures compatibility with equipment designed for that orientation. Precision bearings and seals guarantee long‑term reliability and consistent performance. With simple maintenance, it delivers durable operation even under continuous industrial use.
