Operating principle

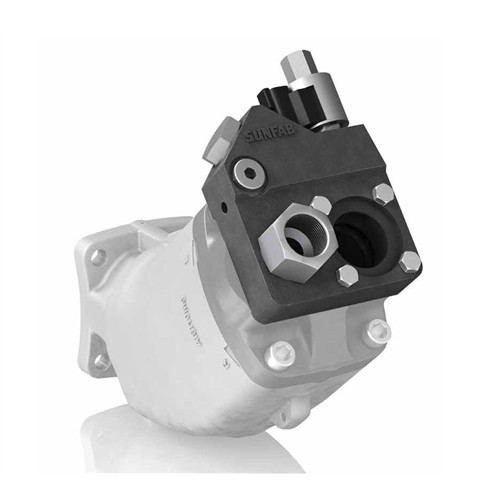

The bypass valve functions by redirecting hydraulic fluid back to the tank, bypassing the pressurized system. When 24V is applied, the solenoid activates and closes the bypass channel, allowing fluid to flow into the working circuit.
When de-energized, the valve reopens the bypass, diverting fluid away from the high-pressure side. This helps prevent pressure spikes and unnecessary energy use during idle or startup phases of the pump.
