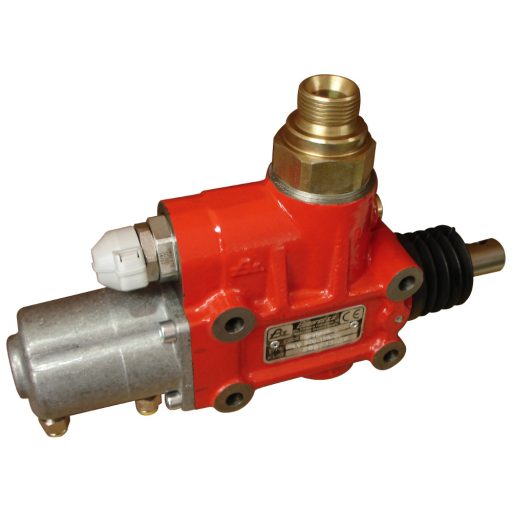

TIPPING VALVE BEZARES BZDP 150
The Bezares BZDP 150 is a high-performance, pneumatically operated tipping valve designed for use on dump trucks and industrial hydraulic applications. It supports flow rates up to 150 L/min and withstands pressures up to 350 bar, featuring an integrated pressure relief valve and emergency stop function.
The 3-position operation (raise – hold – lower) ensures precise and safe control, even under heavy loads. Its design allows easy installation and durable performance in demanding transport and construction environments.
Operating principle
The valve is controlled by a pneumatic signal, which actuates an internal spool to direct hydraulic oil to either the lift or lower circuit. In the neutral position, all ports are closed, preventing unintended movement. An integrated pressure relief valve protects the system from overload, and optional add-ons like a pressure switch or stroke sensor can enhance control.
This design ensures reliable, safe, and responsive tipping operations across a wide range of working conditions.
