SUNFAB PISTON HYDRAULIC PUMP SLPD-56/28

Name: SUNFAB PISTON HYDRAULIC PUMP SLPD-56/28
Brand: SUNFAB
SKU: HK_50424
Price: 1885 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 56/28

Max. pressure (bar): 350

Design: AXIAL PISTON HYDRAULIC PUMP

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Neutral

Manufacturer: SUNFAB

Manufacturer part number: 50424

Available to order

1 485 €+VAT

Item number:

HK_50424

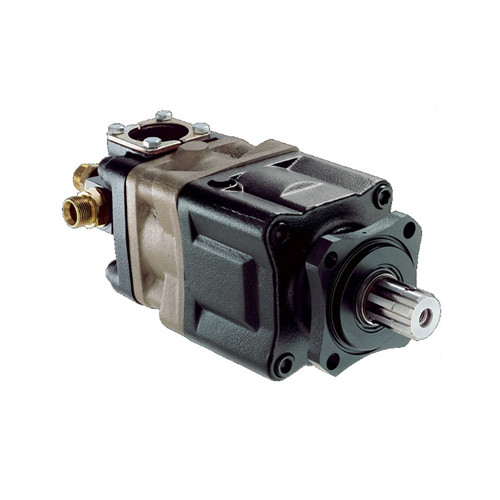

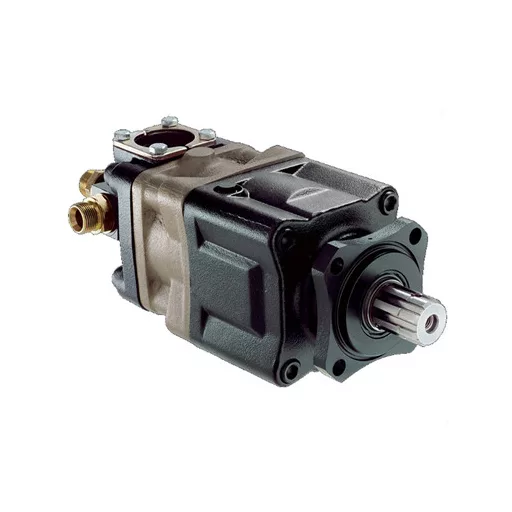

Sunfab SLPD 56/28 DIN dual flow pump

The Sunfab SLPD 56/28 DIN is a reliable, compact and extremely quiet dual flow hydraulic pump specifically developed for mobile hydraulic systems.

Main advantages

Neutral rotation direction – Bi-directional
Two independent hydraulic circuits – 56 cm³/rev and 28 cm³/rev
Low noise level – smooth and quiet operation across the entire speed and pressure range
Compact design – direct PTO mounting even in confined spaces
Flexible installation – can be mounted using a frame bracket or an intermediate shaft
Long service life – carefully selected materials, bearings and seals
Cost-effective solution – replaces two pumps and a splitter gearbox with a single compact unit

Applications

Mobile hydraulics
Municipal and construction vehicles
Systems where continuous and reliable performance is essential

Data

Weight:

26 kg/pc(s)

Details

Working Principle

Inside the pump, a swash plate mechanism drives axially placed pistons in alternating suction and pressure strokes. Oil is drawn in on the suction side and expelled under high pressure on the discharge side. Integrated check valves prevent reverse flow and maintain consistent system pressure. The dual displacement design allows for simultaneous operation of different hydraulic circuits. This results in smooth, quiet, and reliable operation even during continuous duty cycles.
