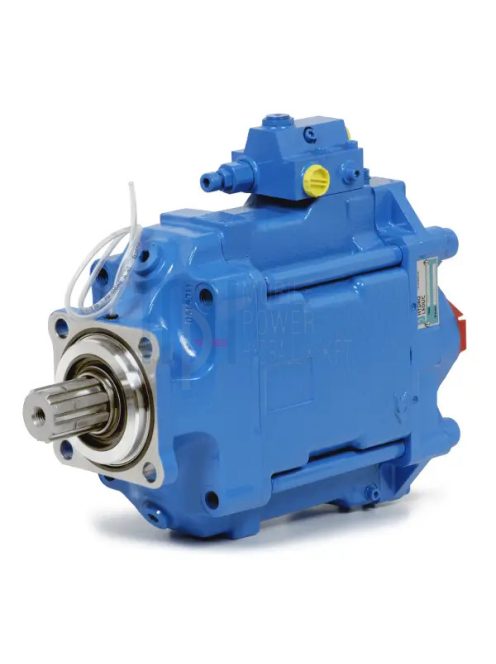

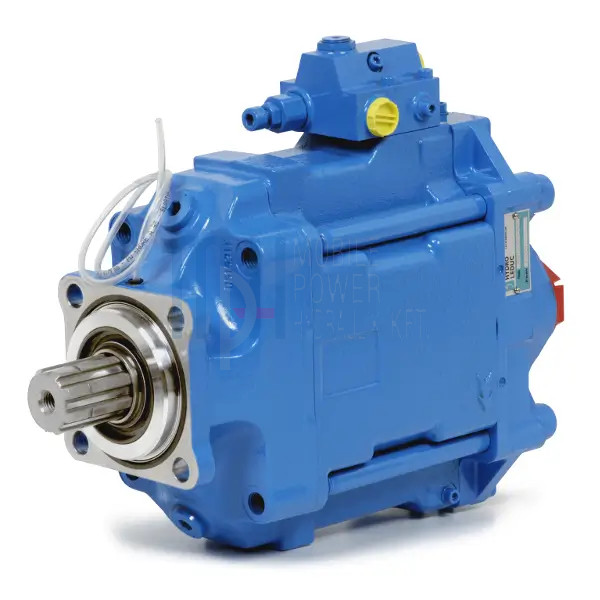

Hydro Leduc TXV 92 – Load Sensing variable displacement hydraulic pump (0512525)
Product description:
The Hydro Leduc TXV 92 is a high-performance, variable displacement, load-sensing controlled piston hydraulic pump. By sensing hydraulic load, the system automatically adjusts the delivered flow rate, reducing energy consumption, minimizing oil heating, and ensuring precise control. The TXV series was developed specifically for truck hydraulic applications, including cranes, municipal vehicles, forestry machinery, and other heavy-duty equipment.
Main technical data:
- Part number: 0512525
- Maximum displacement: 92 cm³/rev
- Max. operating pressure: 400 bar
- Max. peak pressure: 420 bar
- Torque at 300 bar: 515 Nm
- Maximum speed (at full displacement): 1900 rpm
- Maximum speed (standby): 3000 rpm
- Weight: 26 kg
- Rotation: Counterclockwise (CCW)
Applications:
- Truck hydraulic systems
- Forestry and loader cranes
- Municipal vehicles (waste collection, snow clearing and salt spreading systems)
- Construction and specialized hydraulic machines
The Hydro Leduc TXV 92 (CCW) model offers high reliability, energy-efficient operation, and precise control for any intensive hydraulic application.
