SUNFAB PISTON HYDRAULIC PUMP SAP-108R-N-DL4-L35-SOS
SUNFAB PISTON HYDRAULIC PUMP SAP-108R-N-DL4-L35-SOS SUNFAB PISTON HYDRAULIC PUMP SAP-108R-N-DL4-L35-SOS SUNFAB PISTON HYDRAULIC PUMP SAP-108R-N-DL4-L35-SOS
Details

Working Principle

This pump uses a swash plate mechanism to move axially arranged pistons, creating a reciprocating motion that draws in and pushes out hydraulic oil. Oil is drawn in at the suction port and discharged under pressure at the outlet port. Integrated check valves prevent reverse flow, ensuring stable pressure throughout the system. The axial piston design provides high efficiency and quiet operation. Its configuration is especially beneficial in compact installations and continuous-duty cycles.

SUNFAB PISTON HYDRAULIC PUMP SAP-108R-N-DL4-L35-SOS

Article No.:
HK_23108R
In stock
899+VAT

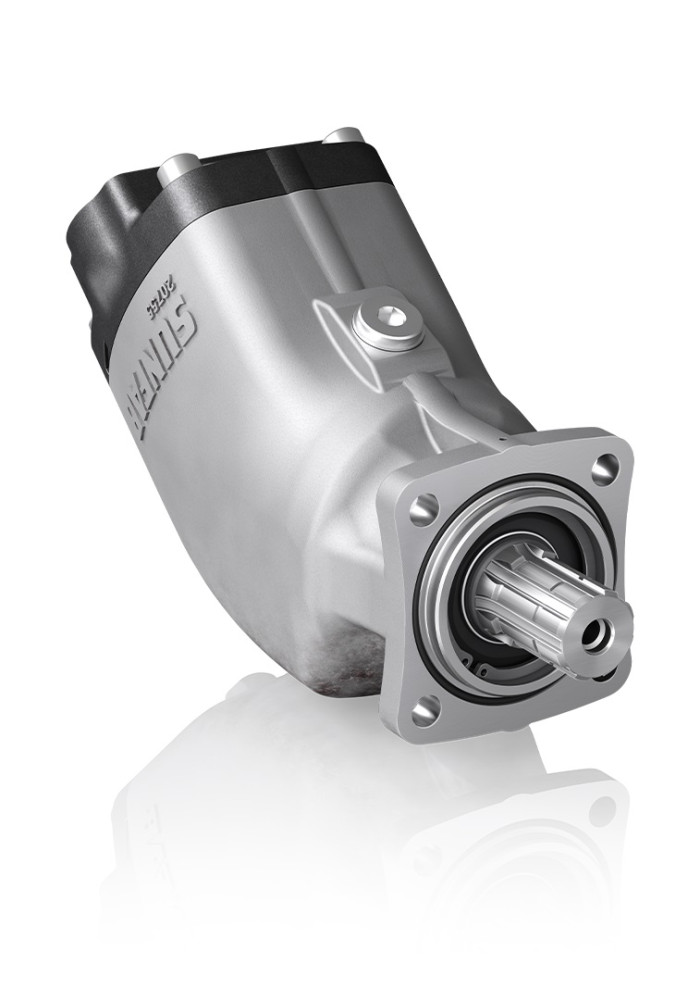

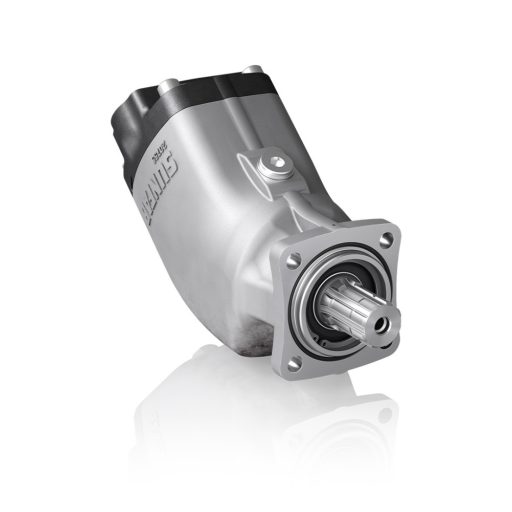

The Sunfab SAP-108R-N is a high-performance axial piston pump, specifically designed for mobile hydraulic systems. With a displacement of 108 cm³/rev and a working pressure of up to 400 bar, it is ideal for applications requiring high power and reliability, such as crane systems on trucks or municipal service vehicles.

Its compact design with DIN-standard connectors allows for space-saving, direct installation onto the vehicle's PTO (power take-off). The robust construction and precision engineering ensure long service life and minimal maintenance requirements. It is a reliable choice for any company looking for an efficient and durable hydraulic solution.



Delivery capacity (cm³/rev; liters/min): 108
Max. pressure (bar): 400
Design: AXIAL PISTON HYDRAULIC PUMP
Variable / Fixed displacement: Constant volume displacement hydraulic pump
Direction of rotation: Right but adjustable
Manufacturer: SUNFAB
Manufacturer part number: 23108R
Info
Weight:
17 kg/pc(s)
