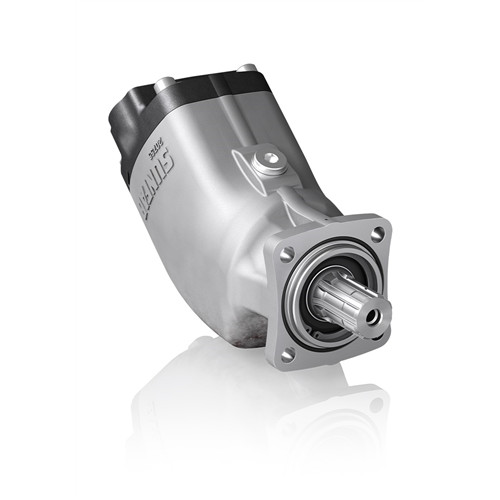

The SUNFAB SAP-108R-N-I45-W45-Z1M is a fixed displacement axial piston pump designed for demanding mobile hydraulic applications, such as truck-mounted cranes, tippers, and hook lifts. With a displacement of 108 cm³/rev, it delivers a flow rate of approximately 162 liters per minute at 1500 rpm, operating at a maximum pressure of 400 bar. Its compact and lightweight aluminum housing ensures efficient heat dissipation and corrosion resistance.
The pump features a 4-bolt DIN 4-h (ISO 7653D) mounting flange and an 8-tooth DIN 5462/ISO 14 splined shaft, allowing for direct PTO installation or via a frame bracket with an intermediate shaft. Designed for right-hand rotation, it offers reliable performance in various industrial and transport applications.
