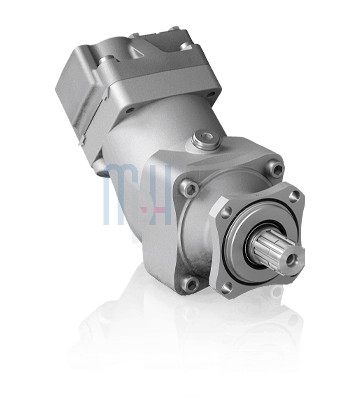

SUNFAB PISTON HYDRAULIC PUMP SCPD-76/76R
Details

Working Principle

This pump operates with a cylinder chamber and a reciprocating piston. During the suction stroke, the piston retracts, creating a vacuum that draws hydraulic oil into the chamber. In the discharge stroke, the piston moves forward, compressing the oil and pushing it toward the outlet. Check valves ensure that oil flows only in one direction. The smooth piston action provides a stable and controlled pressure output.

SUNFAB PISTON HYDRAULIC PUMP SCPD-76/76R

Article No.:
HK_141-0-0002
Available for order
2 139+VAT

The SUNFAB SCPD 76/76R is a high-performance dual-flow axial piston pump designed specifically for mobile and industrial hydraulic systems. With two 76 cm³/rev pump units, it can simultaneously supply two separate hydraulic circuits, such as operating cranes, lifts, and tipping systems concurrently. Its compact design and low noise level make it ideal for installation in trucks and machinery.

The robust construction and SUNFAB's premium quality ensure long service life and reliable operation even under extreme working conditions. This model features a right-hand (R) rotation direction, so it's important to confirm the drive side before installation.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 76/76
Max. pressure (bar): 350
Design: AXIAL PISTON HYDRAULIC PUMP
Variable / Fixed displacement: Állandó térfogat kiszorítású hidraulika szivattyú
Direction of rotation: Jobb
Manufacturer: SUNFAB
Info
Weight:
26 kg/db
