TIPPING VALVE OMFB MOD 150 L 3/4"

Name: TIPPING VALVE OMFB MOD 150 L 3/4"
Brand: OMFB
SKU: HK_12100800185
Price: 386 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 150

Max. pressure (bar): 280

Type of valve: Tipping valve

Connection: 3/4"

Manufacturer: OMFB

Datasheet: Kattintson ide a letöltéshez

Manufacturer part number: 12100800185

Available to order

304 €+VAT

Item number:

HK_12100800185

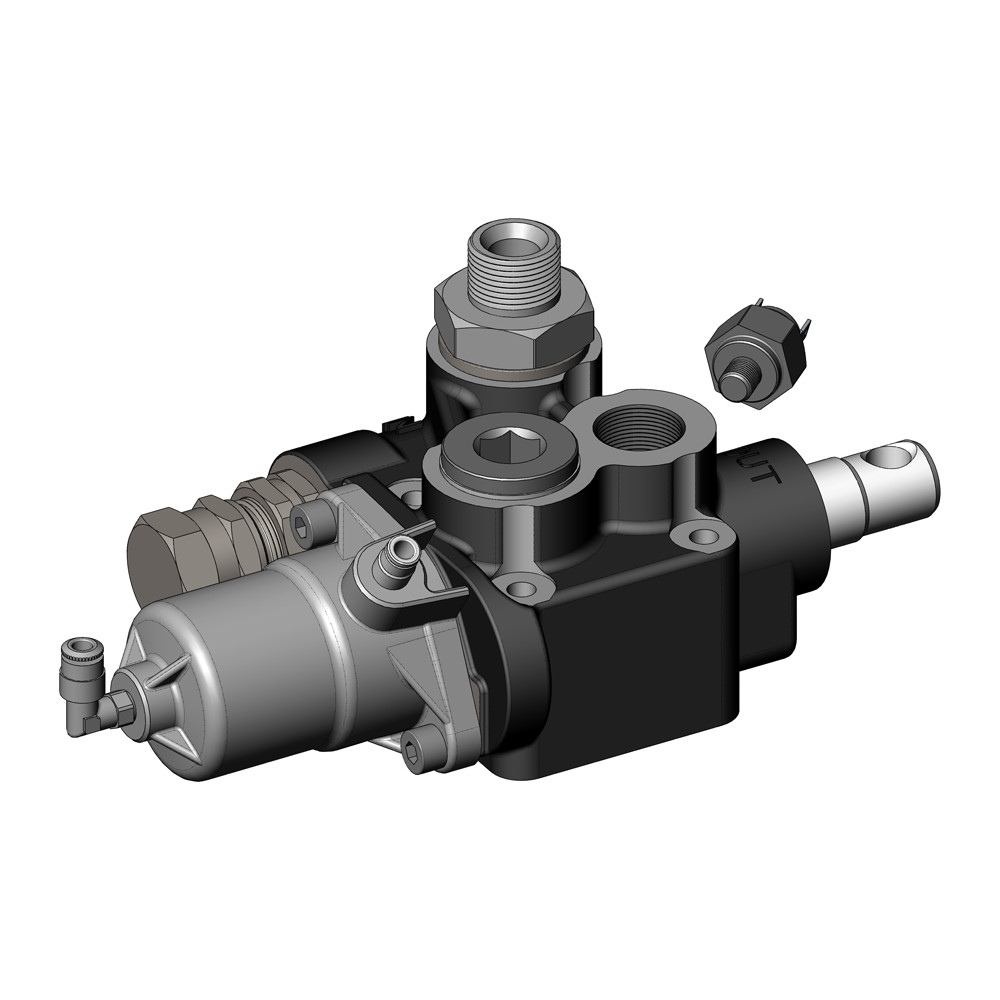

OMFB 121-008-00185 – MODULAR 150 CE “DIRECT” pneumatic proportional tipping valve

Product description:

The MODULAR 150 CE “DIRECT” (121-008-00185) is a pneumatic proportional tipping valve designed for hydraulic systems of medium to heavy-duty tipper vehicles. It features an open center configuration and is manufactured in compliance with CE directives. The valve is equipped with an integrated check valve and a direct-acting, adjustable pressure relief valve, ensuring reliable control during lifting and lowering operations. When used together with a pneumatic deviator (N-Force), continuous modulation of the lowering speed can also be achieved.

Main features:

Nodular (ductile) cast iron housing – suitable for operating pressures up to 400 bar
Compact design with front-facing ports
Mechanical, direct end-stop
Prepared for pressure switch installation (optional)
Zinc-plated body and nickel-plated spool
Oil temperature range: -15…+110 °C, viscosity: 12…100 cSt, recommended filtration: 25 μm

Technical data:

Flow rate: 150 l/min
Pressure setting: factory set to 160 bar, max. 280 bar
Ports: IN G 3/4; TANK 1 G 1; TANK 2 G 1/2; OUT G 3/4
Weight: 5.8 kg

Data

Weight:

3 kg/pc(s)

Details

Operating principle

This valve is operated via a manual lever that directs hydraulic flow to the desired circuit. Moving the lever forward or backward activates either the pressure line or the return line, controlling cylinder extension or retraction (e.g., lifting or lowering a tipping bed).

In the neutral position, the valve blocks flow, keeping the system stable and in position. Its simple yet robust operation makes it a reliable choice for safe, manual control of vehicle hydraulics.
