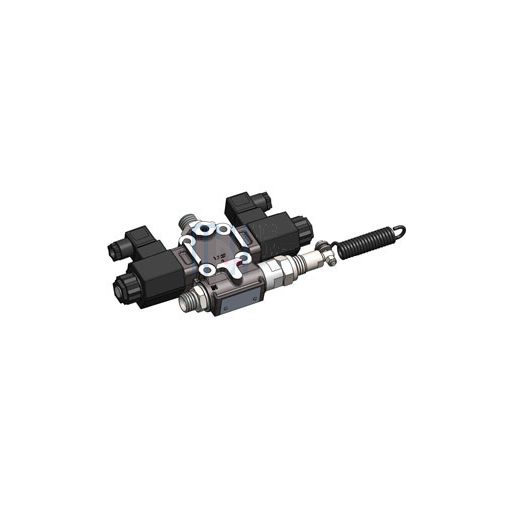

OMFB 12100400554 – FE-40 CE 12V electric tipping valve
Product description:
The FE-40 CE 12V (12100400554) is an electrically operated tipping valve designed for hydraulic systems of light-duty tipper vehicles. It features an open center configuration and is manufactured in compliance with CE directives. The valve is equipped with an integrated check valve and an adjustable pressure relief valve, as well as a mechanical end stop; its design is also prepared to accept a pressure switch (optional). The zinc-plated body and nickel-plated spool ensure durable and reliable operation.
Main features:
- Electric actuation (via switch)
- Integrated check valve and adjustable pressure relief valve
- Compact design
- Frame-mountable or direct tank flange mounting (with DSE kit)
- Oil temperature range: -15…+110 °C, viscosity: 12…100 cSt, recommended filtration: 25 μm
Technical data:
- Flow rate: 40 l/min
- Pressure settings: standard setting 140 bar, max. setting 190 bar
- Ports: IN G 1/2, TANK G 1/2, OUT G 1/2 (ISO 228)
