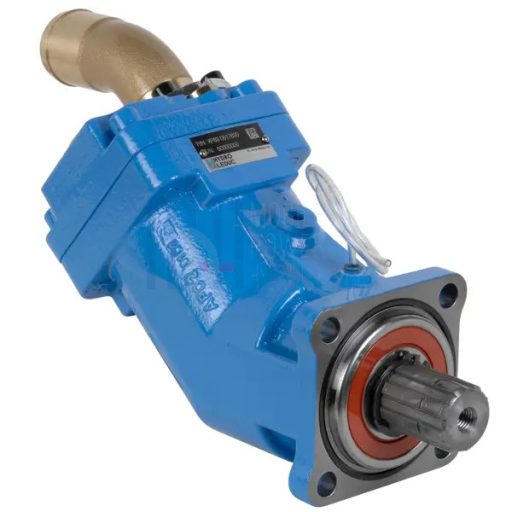

Hydro Leduc XPi 130 – Hydraulic Pump (0523730)
Product Description:
The Hydro Leduc XPi 130 is the highest-displacement, high-performance bent-axis piston hydraulic pump in the XPi series. Its 7-piston design, high-strength materials, and reinforced sealing ensure outstanding reliability and long service life, even under extreme hydraulic loads. The pump can handle 380 bar continuous pressure and 420 bar peak load, operating at speeds up to 1750 rpm.
Main Technical Data:
- Part Number: 0523730
- Displacement: 129.8 cc/rev
- Max. Continuous Pressure: 380 bar
- Max. Peak Pressure: 420 bar
- Maximum Speed: 1750 rpm
- Absorbed Torque at 380 bar: 827 Nm
- Weight: 15.35 kg (without inlet fitting) / 15.8 kg (with inlet fitting)
- Dual rotation: rotation direction can be changed by swapping the inlet and outlet ports.
Applications:
- High-performance industrial and mobile hydraulic systems
- Cranes, construction machinery, lifting equipment
- Applications requiring high flow rate and substantial pressure load
The Hydro Leduc XPi 130 represents the top tier of the series, ideal wherever a high-displacement, extremely reliable, and powerful hydraulic pump is required.
