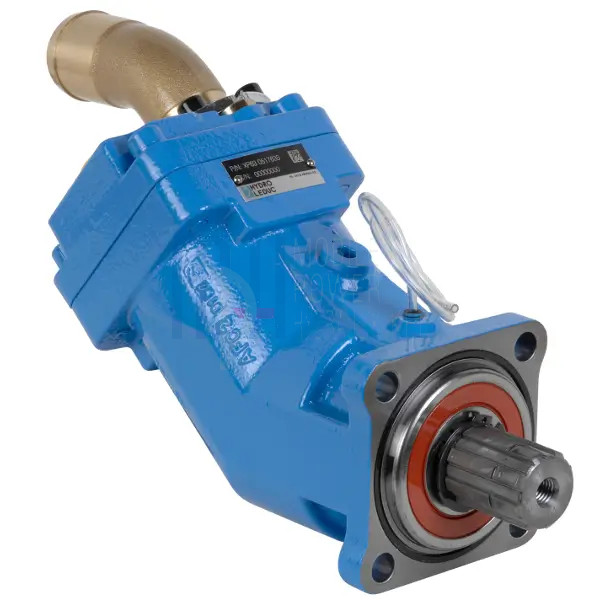

Hydro Leduc XPi 108 – Hydraulic Pump (0523750)
Product Description:
The Hydro Leduc XPi 108 is a high-displacement, fixed-displacement, bent-axis piston hydraulic pump designed for high-performance industrial and mobile hydraulic systems. Its 7-piston design, high-strength materials, and reinforced sealing provide exceptional durability and long-term operational reliability. The pump can handle 380 bar continuous pressure and 420 bar peak load, with a maximum operating speed of 1900 rpm.
Main Technical Data:
- Part Number: 0523750
- Displacement: 108.3 cc/rev
- Max. Continuous Pressure: 380 bar
- Max. Peak Pressure: 420 bar
- Maximum Speed: 1900 rpm
- Absorbed Torque at 380 bar: 687 Nm
- Weight: 14.95 kg (without inlet fitting) / 15.4 kg (with inlet fitting)
- Dual rotation: rotation direction can be changed by swapping the inlet and outlet ports.
Applications:
- High-performance industrial hydraulic systems
- Construction machinery, cranes, lifting equipment
- Hydraulic applications requiring high flow capacity and continuous duty
The Hydro Leduc XPi 108 is an excellent choice for any system that requires a high-displacement, powerful, and reliable hydraulic pump.
