OMFB HYDRAULIC GEAR PUMP TANDEM ISO 82 D

Article No.:
HK_10502310820
OMFB HYDRAULIC GEAR PUMP TANDEM ISO 82 D
OMFB HYDRAULIC GEAR PUMP TANDEM ISO 82 D OMFB HYDRAULIC GEAR PUMP TANDEM ISO 82 D
Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 82
Max. pressure (bar): 190
Design: Gear pump
Variable / Fixed displacement: Constant volume displacement hydraulic pump
Direction of rotation: Right
Manufacturer: OMFB
Manufacturer part number: 10502310820
Available for order
873+VAT

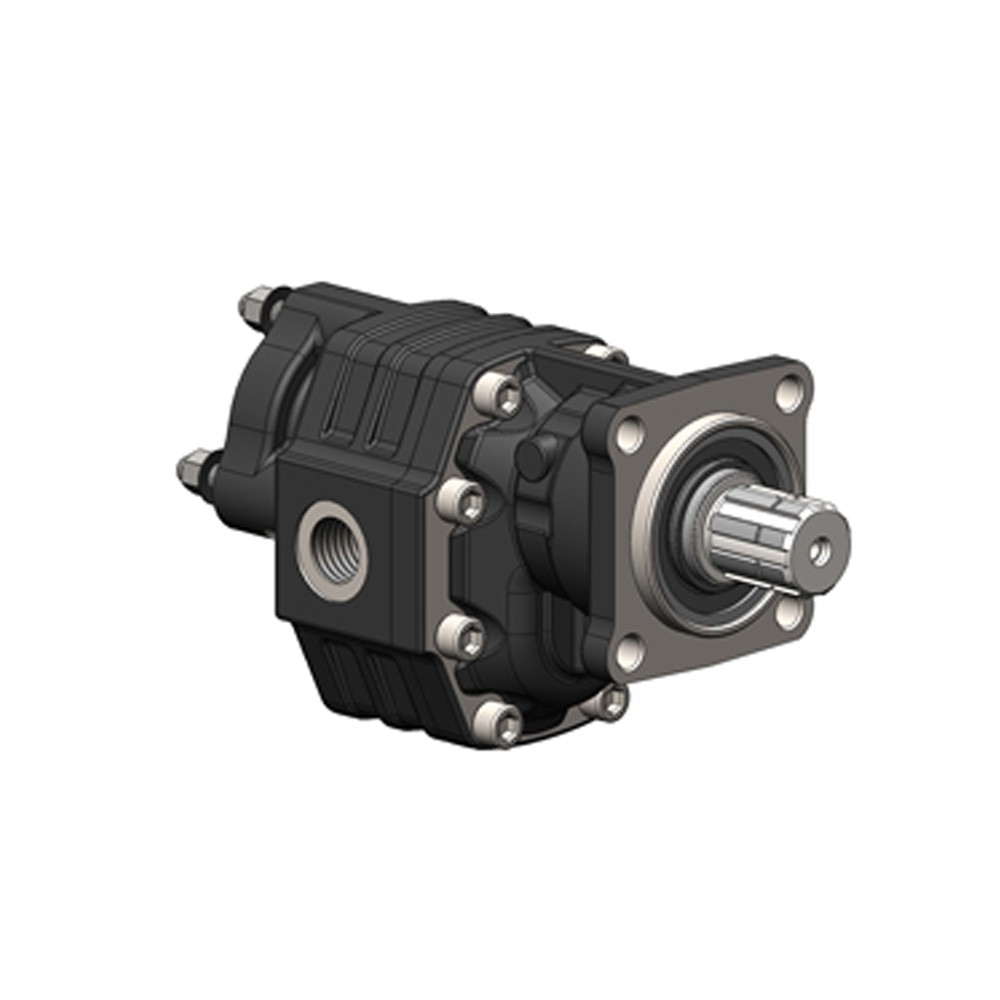

The OMFB NPH ISO 82 D is a unidirectional gear hydraulic pump designed for medium to heavy-duty applications, making it an excellent choice for industrial and transportation sectors. With a displacement of 81.08 cm³ per revolution, it delivers a flow rate of approximately 82 liters per minute at 1000 rpm.

The pump operates at a maximum continuous pressure of 190 bar and can handle peak pressures up to 220 bar. Featuring a 4-hole ISO 32x36 flange and a DIN 5462 8x32x36 mm splined shaft, it ensures secure mounting and efficient power transmission. Its cast-iron construction and optional bronze thrust plate enhance durability, making it suitable for various industrial and agricultural hydraulic systems.



Info
Weight:
12 kg/pc(s)
Details

OMFB FOGASKERÉK SZIVATTYÚ NPH TD ISO 82 D

Meghatározott forgásirányú, öntöttvas házas, fogaskerekes hidraulika szivattyúk közepes- és nagy igénybevételhez, szállítási térfogat 17-82 cm3 - 4 furatú ISO 32x36 peremes, vagy 3 furatú UNI 21x25 peremes ormány – második, 3 furatú UNI 21x25 peremes szivattyú fogadására előkészítve hátul. Oldalsó szívónyílás és nyomóág, OPCIONÁLIS: bronz nyomólemez.

OMFB HYDRAULIC GEAR PUMP TANDEM ISO 82 D
OMFB HYDRAULIC GEAR PUMP TANDEM ISO 82 D
873+VAT
