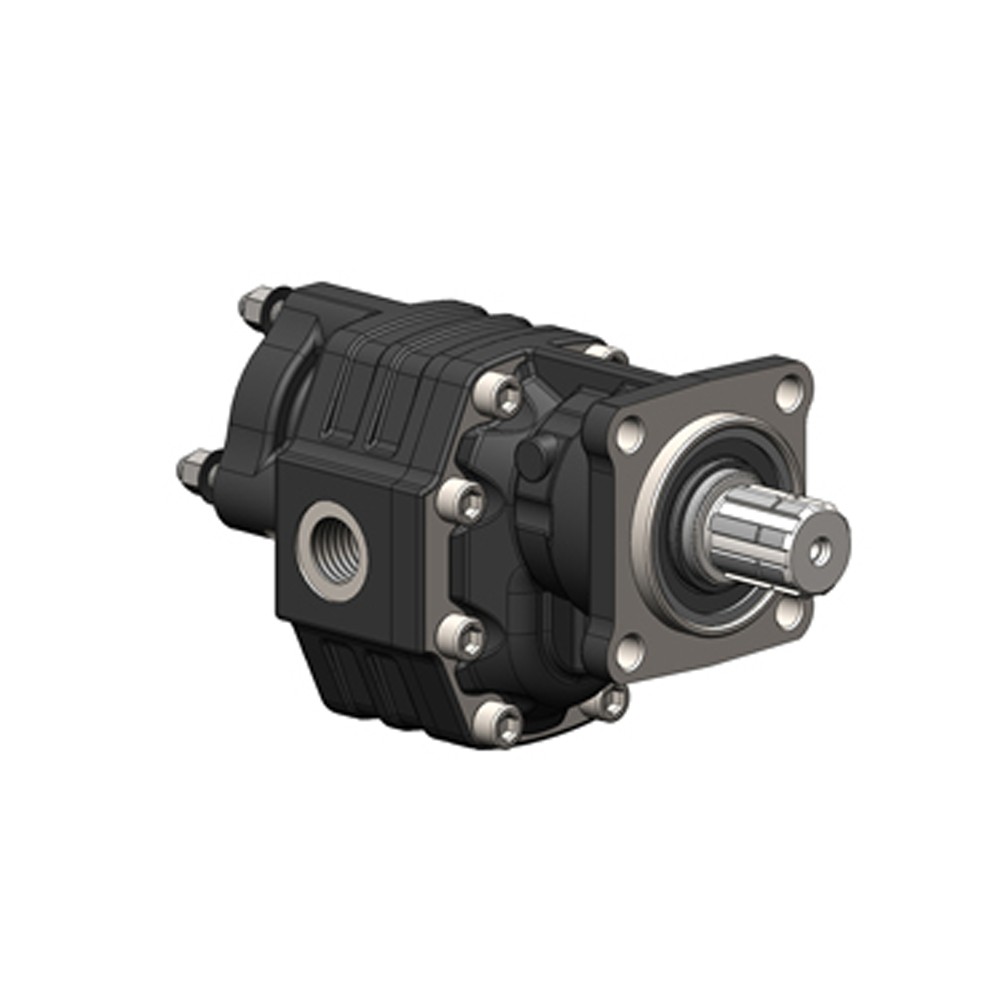

OMFB Gear Pump 10502310517
Product description:
The OMFB Tandem NPH-51 belongs to the family of 4-bolt ISO mounted, tandem-prepared gear pumps (second pump with UNI flange). Its robust, high-load-capacity design ensures reliable performance for truck hydraulic systems and industrial applications. The pump is fully compatible with the standard connections and dimensions of the NPH ISO series, making installation into existing systems straightforward.
Main features:
- Type: NPH-51
- Rotation: Right
- Inlet port (IN): G 3/4”
- Outlet port (OUT): G 3/4”
- Displacement: 50.82 cm³/rev
- Continuous working pressure (P1): 240 bar
- Intermittent pressure (P2): 260 bar
- Peak pressure (P3): 280 bar
- Maximum speed (continuous): 2000 rpm
- Maximum speed (intermittent): 2500 rpm
- Minimum speed: 300 rpm
- Mounting: 4-bolt, Ø12 mm (ISO)
- Housing material: Cast iron
- Weight: 13.5 kg
- Tandem preparation: Compatible with second pump using UNI flange
