OMFB HYDRAULIC GEAR PUMP TANDEM ISO 100 D NPGH

Name: OMFB HYDRAULIC GEAR PUMP TANDEM ISO 100 D NPGH
Brand: OMFB
SKU: HK_10502211008
Price: 1487 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 100

Max. pressure (bar): 250

Design: Gear pump

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Right

Manufacturer: OMFB

Manufacturer part number: 10502211008

Available to order

1 171 €+VAT

Item number:

HK_10502211008

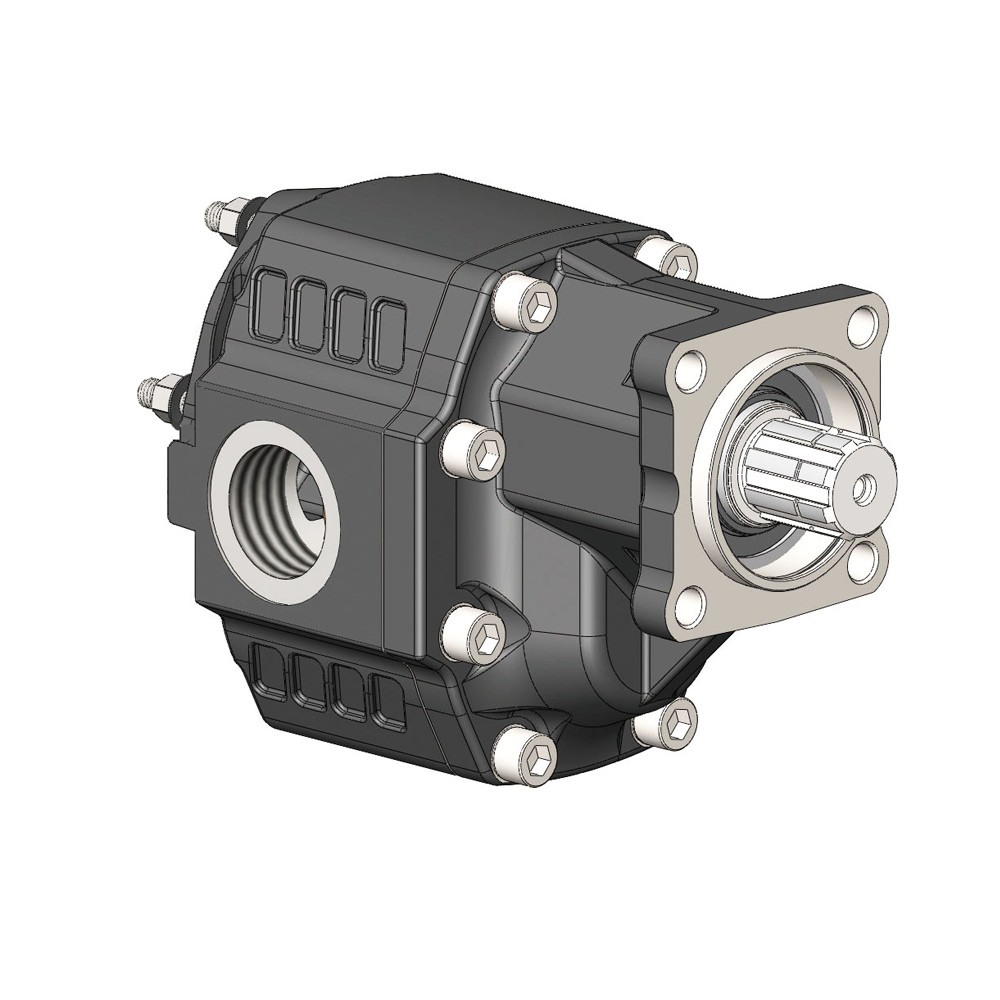

OMFB Gear Pump 10502211008

Product description:
The OMFB NPGH-100 belongs to the family of 4-bolt ISO mounted gear pumps with tandem preparation (second pump with UNI flange). Featuring a robust cast iron housing, it provides reliable performance for truck hydraulic systems and industrial applications.

Main features:

Type: NPGH-100
Rotation: Right
Inlet port (IN): G 1¼”
Outlet port (OUT): G 1”
Displacement: 102.60 cm³/rev
Peak pressure: 280 bar
Minimum speed: 300 rpm
Mounting: 4-bolt, Ø12.5 mm
Housing material: Cast iron
Weight: 21.5 kg
Tandem preparation: Compatible with second pump using UNI flange

Data

Weight:

18 kg/pc(s)

Details

Operating Principle

The pump operates via two intermeshing gears that transport hydraulic oil from the inlet to the outlet. The oil flows through the gear-tooth cavities along the housing wall without backward flow. This produces a smooth, pulse-free oil flow that is critical for stable system operation. Its simple, robust mechanical design delivers reliable long-term performance.
