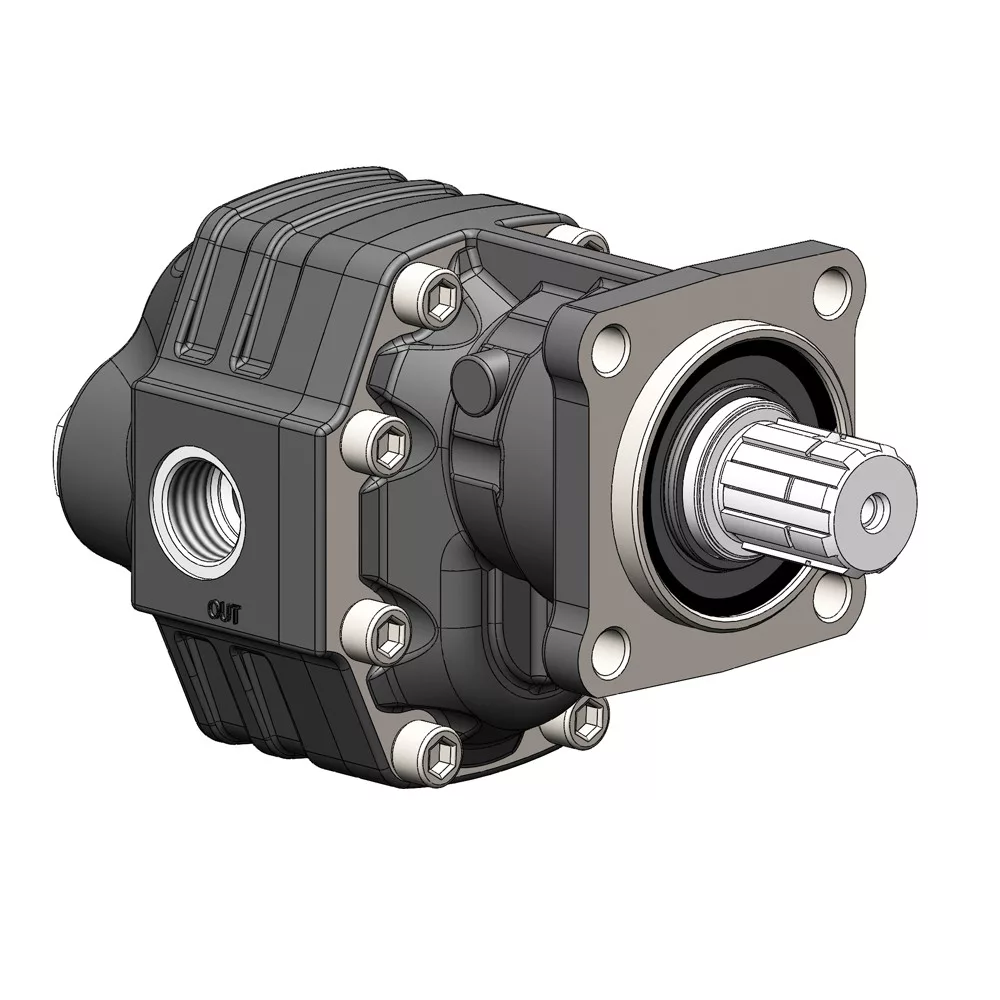

OMFB Gear Pump 10501110824
Product description:
The OMFB NPH ISO series is characterized by durability, precision and reliability.
The NPH-82 model is a high-performance 4-bolt ISO mounted hydraulic pump, designed for truck tipping systems, cranes, lifting equipment and industrial hydraulic applications.
Its robust cast iron housing and advanced gear technology ensure long service life, efficient oil flow and low noise levels even under extreme operating conditions.
Main features:
- Type: NPH-82
- Rotation: Left
- Inlet port (IN): G 1¼”
- Outlet port (OUT): G 3/4”
- Displacement: 81.88 cm³/rev
- Max. working pressure: 180 bar
- Peak pressure: 210 bar
- Maximum speed: 2300 rpm
- Minimum speed: 300 rpm
- Shaft type: 8×32×36 (ISO 14)
- Mounting: 4-bolt, Ø12 mm
- Housing material: Cast iron
- Weight: 15.5 kg
