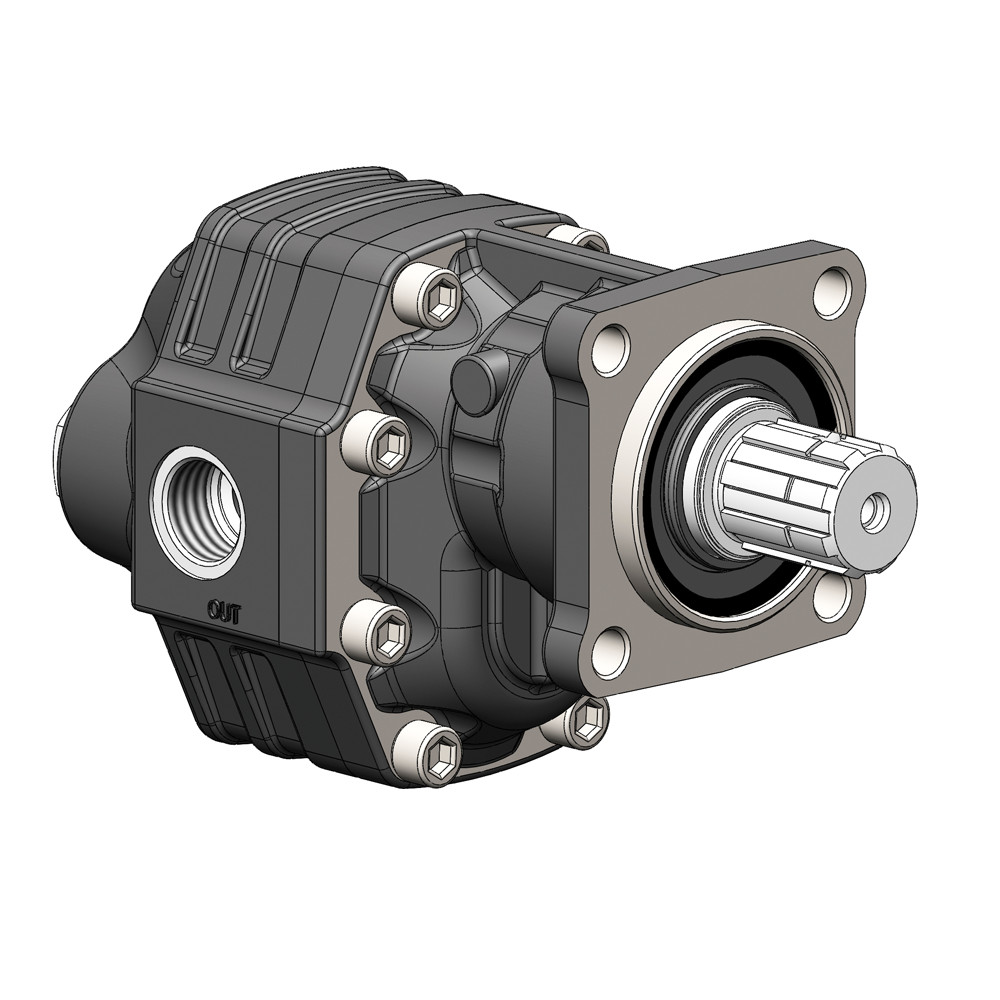

OMFB Gear Pump 10501110431
Product description:
The OMFB NPH ISO series is characterized by durability, precision, and reliability.
The NPH-43 model is a high-performance 4-hole ISO mounted hydraulic pump, designed for truck tipping systems, cranes, lifting equipment, and industrial hydraulic applications.
Its robust cast iron housing and refined gear technology ensure long service life, efficient oil flow, and low noise levels even under extreme operating conditions.
Main features:
- Type: NPH-43
- Rotation: Counterclockwise
- Suction port (IN): G 3/4”
- Pressure port (OUT): G 3/4”
- Displacement: 43.17 cm³/rev
- Maximum operating pressure: 260 bar
- Peak pressure: 290 bar
- Maximum speed: 2500 rpm
- Minimum speed: 300 rpm
- Shaft configuration: 8×32×36 (ISO 14)
- Mounting: 4-hole, Ø12 mm
- Housing material: Cast iron
- Weight: 13.5 kg
