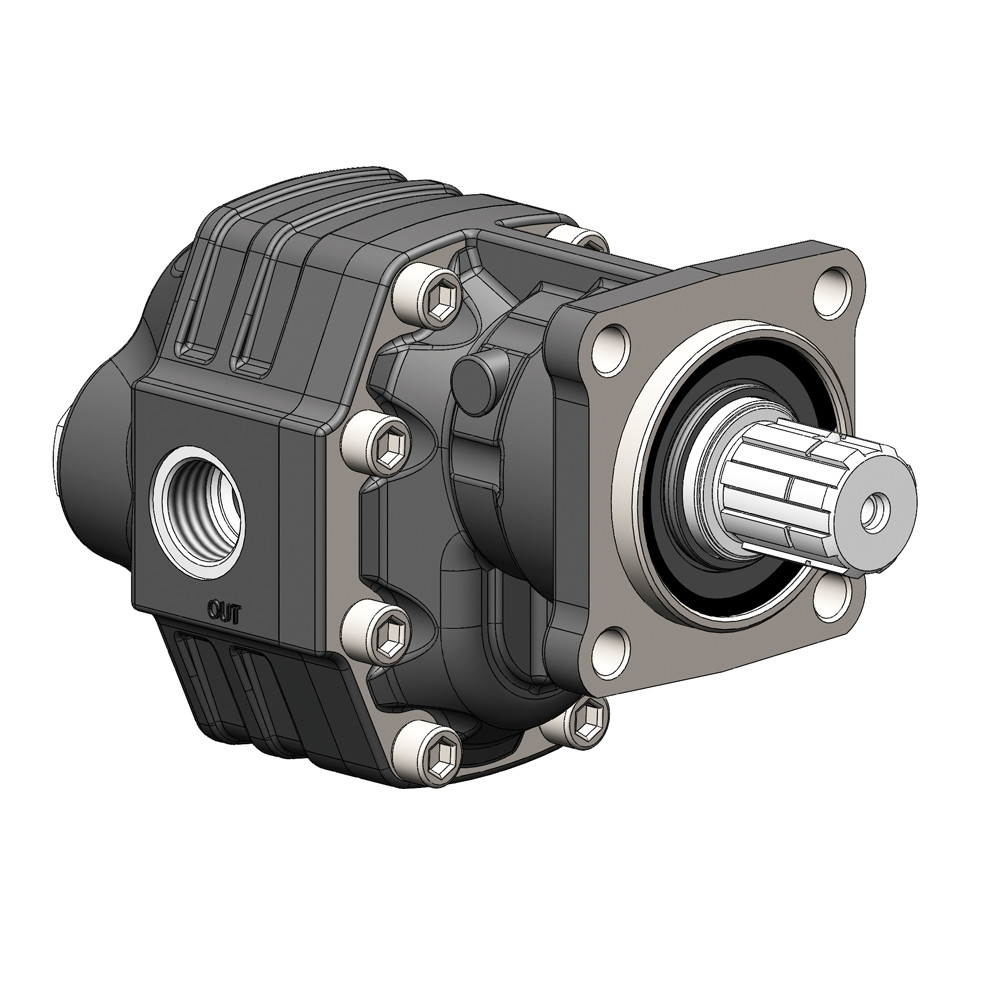

OMFB Gear Pump 10501110342
Product description:
The NPH-34 model belongs to OMFB’s high-performance, reliable range of 4-bolt ISO flange hydraulic pumps.
Thanks to precise Italian manufacturing and its robust cast iron housing, it is an excellent choice for truck tipping systems, hydraulic lifts, cranes and industrial machinery.
The pump ensures smooth oil flow and high efficiency even under high pressure, offering long-term reliable operation.
Main features:
- Type: NPH-34
- Rotation: Right
- Inlet port (IN): G 3/4”
- Outlet port (OUT): G 3/4”
- Displacement: 33.88 cm³/rev
- Max. working pressure: 280 bar
- Peak pressure: 310 bar
- Maximum speed: 2800 rpm
- Minimum speed: 300 rpm
- Shaft type: 8×32×36 (ISO 14)
- Mounting: 4-bolt, Ø12 mm
- Housing material: Cast iron
- Weight: 13 kg
